FN9244ER-3-06 | Schaffner

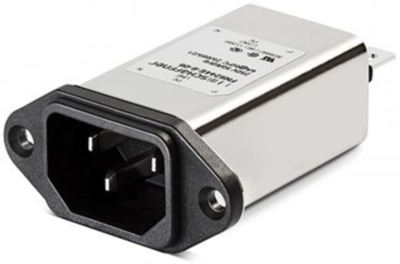

IEC inlet filter C14, 50 to 400 Hz, 3 A, 250 VAC, 13.45 mH, faston plug 6.3 mm, FN9244ER-3-06

default S
default L
Total price
(8.41 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
120 pcs.
8.41 €
*incl. VAT plus shipping costs
Description

Product by Schaffner at Bürklin Elektronik

IEC inlet filter, FN9244ER-3-06, SCHAFFNER

The FN9244ER-3-06 is an IEC inlet filter that combines and mains with excellent filter attenuation in a small form factor. This product includes a wide selection on amperage ratings, output connections, mounting possibilities and filters for medical applications are designed to offer you the desired solution.

Features

  • Superior attenuation performance
  • Optional earth line choke
  • Standard or wide mounting flange

Applications

  • Portable electrical and electronic equipment
  • Small to medium-sized machines and household equipment
  • Single-phase power supplies, switch-mode power supplies
  • Test and measurement equipment
  • Rack mounting equipment
  • Medical devices (MDD)
Technical specifications
ohmic resistance 1000000 Ω
Connection faston plug 6.3 mm
Number of phases 1
Version IEC inlet filter C14
Rated Voltage 250 VAC
Inductance per line 13.45 mH
integrated switch No
Capacity X|Y X2 100 nF, Y2 2.2 nF
max. frequency 0.0004 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated current 3 A
Show similar products (0)
Logistics
Country of origin TH
Customs tariff number 85363010
Original Packaging Carton with 120 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 6 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
IEC inlet filter C14, 50 to 400 Hz, 10 A, 250 VAC, 1.02 mH, faston plug 6.3 mm, FN9244ER-10-06
Order No.:
 71D1473
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9244ER-10-06
120 pcs.
8.66 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
10 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 12 A, 250 VAC, 580 µH, faston plug 6.3 mm, FN9244ER-12-06
Order No.:
 71D1474
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9244ER-12-06
120 pcs.
8.75 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
12 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 3 A, 250 VAC, 13.45 mH, faston plug 6.3 mm, FN9244ER-3-06
Order No.:
 71D1470
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9244ER-3-06
120 pcs.
8.41 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
3 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 15 A, 250 VAC, 400 µH, faston plug 6.3 mm, FN9244ER-15-06
Order No.:
 71D1476
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9244ER-15-06
120 pcs.
8.87 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
15 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 8 A, 250 VAC, 2.3 mH, faston plug 6.3 mm, FN9244ER-8-06
Order No.:
 71D1472
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9244ER-8-06
120 pcs.
8.58 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
8 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 6 A, 250 VAC, 4.1 mH, faston plug 6.3 mm, FN9244ER-6-06
Order No.:
 71D1471
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9244ER-6-06
120 pcs.
8.54 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
6 A
0.00005 MHz
