FN9233SB-10-06 | Schaffner

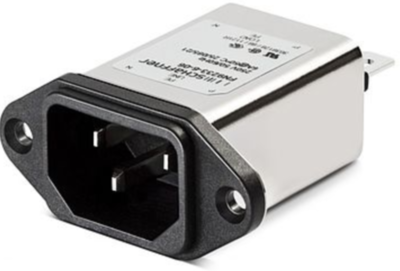

IEC inlet filter C14, 50 to 400 Hz, 10 A, 250 VAC, 450 µH, faston plug 6.3 mm, FN9233SB-10-06

default S
default L
Total price
(5.65 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
120 pcs.
5.65 €
*incl. VAT plus shipping costs
Description

Product by Schaffner at Bürklin Elektronik

IEC inlet filter, FN9233SB-10-06, SCHAFFNER

The FN9233SB-10-06 is an IEC inlet filter that combines and mains with excellent filter attenuation in a small form factor. This product includes a wide selection on amperage ratings, output connections, mounting possibilities and filters for medical applications are designed to offer you the desired solution.

Features

  • Excellent attenuation performance
  • Wide mounting flanges
  • Snap-in version

Applications

  • Portable electrical and electronic equipment
  • Small to medium-sized machines and household equipment
  • Single-phase power supplies, switch-mode power supplies
  • Test and measurement equipment
  • Rack mounting equipment
  • Medical equipment
Technical specifications
ohmic resistance 1000000 Ω
Connection faston plug 6.3 mm
Number of phases 1
Version IEC inlet filter C14
Rated Voltage 250 VAC
Inductance per line 0.45 mH
integrated switch No
Capacity X|Y X2 100 nF
max. frequency 0.0004 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated current 10 A
Show similar products (0)
Logistics
Country of origin TH
Customs tariff number 85363010
Original Packaging Carton with 120 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 2 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
IEC inlet filter C14, 50 to 400 Hz, 1 A, 250 VAC, 22.5 mH, faston plug 6.3 mm, FN9233SB-1-06
Order No.:
 71D1405
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9233SB-1-06
120 pcs.
5.40 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 100 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
1 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 10 A, 250 VAC, 450 µH, faston plug 6.3 mm, FN9233SB-10-06
Order No.:
 71D1409
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9233SB-10-06
120 pcs.
5.65 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 100 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
10 A
0.00005 MHz
