FN9233-15-06HI | Schaffner
IEC inlet filter C16, 50 to 400 Hz, 15 A, 250 VAC, 200 µH, faston plug 6.3 mm, FN9233-15-06HI
Order No.: 71D1278
EAN: 7612774464945
MPN:
FN9233-15-06HI
802720
Unit Price (€ / pc.)
8.2824 € *
Available: 0 pcs.
Leadtime: On Request **

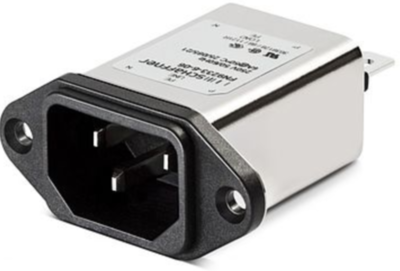

IEC inlet filter, FN9233-15-06HI, SCHAFFNER
The FN9233-15-06HI is an IEC inlet filter that combines and mains with excellent filter attenuation in a small form factor. This product includes a wide selection on amperage ratings, output connections, mounting possibilities and filters for medical applications are designed to offer you the desired solution.
Features
- Excellent attenuation performance
- Wide mounting flanges
- Custom-specific version
Applications
- Portable electrical and electronic equipment
- Small to medium-sized machines and household equipment
- Single-phase power supplies, switch-mode power supplies
- Test and measurement equipment
- Rack mounting equipment
- Medical equipment
Technical specifications
| max. frequency | 400 Hz | |
| Number of phases | 1 | |
| integrated switch | No | |
| Rated current | 15 A | |
| Inductance per line | 200 µH | |
| Capacity X|Y | X2 100 nF, Y2 2.2 nF | |
| With fuse | No | |
| Version | IEC inlet filter C16 | |
| min. operating temperature | -25 °C | |
| Connection | faston plug 6.3 mm | |
| Rated Voltage | 250 VAC | |
| max. operating temperature | 85 °C | |
| min. frequency | 50 Hz |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 120 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
