FN9226-1-06 | Schaffner

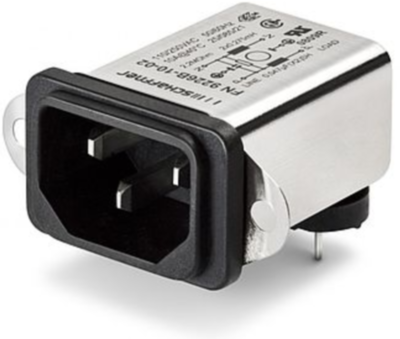

IEC inlet filter C14, 50 to 400 Hz, 1 A, 250 VAC, 4.65 mH, faston plug 6.3 mm, FN9226-1-06

default S
default L
Total price
(8.12 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
200 pcs.
8.12 €
*incl. VAT plus shipping costs
Description

Product by Schaffner at Bürklin Elektronik

IEC inlet filter, FN9226-1-06, SCHAFFNER

The FN9226-1-06 is an IEC inlet filter that combines and mains with excellent filter attenuation in a small form factor. This product includes a wide selection on current ratings, output connections and low leakage versions for medical applications helps you to select the desired solution for your application.

Features

  • Faston connection
  • Good HF coupling to the equipment housing
  • Custom-specific version

Applications

  • Portable electrical and electronic equipment
  • Small to medium-sized machines and household equipment
  • Single-phase power supplies, switch-mode power supplies
  • Test and measurement equipment
  • Rack mounting equipment
  • EDP and office equipment
Technical specifications
Connection faston plug 6.3 mm
Number of phases 1
Version IEC inlet filter C14
Rated Voltage 250 VAC
Inductance per line 4.65 mH
integrated switch No
Capacity X|Y X 47 nF, Y 2.2 nF
max. frequency 0.0004 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated current 1 A
Show similar products (0)
Logistics
Country of origin TH
Customs tariff number 85363010
Original Packaging Carton with 200 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 8 variations
Item description
Price list
Total
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
IEC inlet filter C14, 50 to 400 Hz, 10 A, 250 VAC, 0.27 mH, Solder connection, FN9226-10-02
Order No.:
 71D1263
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9226-10-02
200 pcs.
9.58 €
0.00 € *
Currently not in stock, we will order for you
IEC inlet filter C14
250 VAC
X 47 nF, Y 2.2 nF
0.0004 MHz
1
Solder connection
-25 °C
85 °C
10 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 6 A, 250 VAC, 0.52 mH, faston plug 6.3 mm, FN9226-6-06
Order No.:
 71D1262
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9226-6-06
200 pcs.
8.27 €
0.00 € *
Currently not in stock, we will order for you
IEC inlet filter C14
250 VAC
X 47 nF, Y 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
6 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 1 A, 250 VAC, 4.65 mH, faston plug 6.3 mm, FN9226-1-06
Order No.:
 71D1258
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9226-1-06
200 pcs.
8.12 €
0.00 € *
Currently not in stock, we will order for you
IEC inlet filter C14
250 VAC
X 47 nF, Y 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
1 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 3 A, 250 VAC, 1.24 mH, faston plug 6.3 mm, FN9226-3-06
Order No.:
 71D1260
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9226-3-06
200 pcs.
8.20 €
0.00 € *
Currently not in stock, we will order for you
IEC inlet filter C14
250 VAC
X 47 nF, Y 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
3 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 6 A, 250 VAC, 0.52 mH, Solder connection, FN9226-6-02
Order No.:
 71D1261
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9226-6-02
200 pcs.
9.42 €
0.00 € *
Currently not in stock, we will order for you
IEC inlet filter C14
250 VAC
X 47 nF, Y 2.2 nF
0.0004 MHz
1
Solder connection
-25 °C
85 °C
6 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 1 A, 250 VAC, 4.65 mH, Solder connection, FN9226-1-02
Order No.:
 71D1257
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9226-1-02
200 pcs.
9.25 €
0.00 € *
Currently not in stock, we will order for you
IEC inlet filter C14
250 VAC
X 47 nF, Y 2.2 nF
0.0004 MHz
1
Solder connection
-25 °C
85 °C
1 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 10 A, 250 VAC, 0.27 mH, faston plug 6.3 mm, FN9226-10-06
Order No.:
 71D1264
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9226-10-06
200 pcs.
8.39 €
0.00 € *
Currently not in stock, we will order for you
IEC inlet filter C14
250 VAC
X 47 nF, Y 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
10 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 3 A, 250 VAC, 1.24 mH, Solder connection, FN9226-3-02
Order No.:
 71D1259
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9226-3-02
200 pcs.
9.35 €
0.00 € *
Currently not in stock, we will order for you
IEC inlet filter C14
250 VAC
X 47 nF, Y 2.2 nF
0.0004 MHz
1
Solder connection
-25 °C
85 °C
3 A
0.00005 MHz
