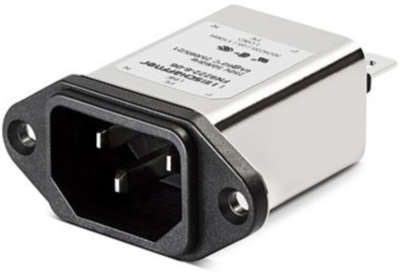

IEC inlet filter C16, 50 to 400 Hz, 15 A, 250 VAC, 75 µH, faston plug 6.3 mm, FN9222R-15-06HI

default S
default L
Total price
(6.16 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
120 pcs.
6.16 €
*incl. VAT plus shipping costs
Description

Product by Schaffner at Bürklin Elektronik

IEC inlet filter, FN9222R-15-06HI, SCHAFFNER

The FN9222R-15-06HI is an IEC inlet filter that combines and mains with excellent filter attenuation in a small form factor. This product includes a wide selection on amperage ratings, output connections, mounting possibilities and filters for medical applications are designed to offer you the desired solution.

Features

  • Excellent performance/size ratio
  • Optional surge pulse protection
  • Custom-specific version

Applications

  • Portable electrical and electronic equipment
  • Small to medium-sized machines and household equipment
  • Single-phase power supplies, switch-mode power supplies
  • Test and measurement equipment
  • Rack mounting equipment
  • Medical equipment
Technical specifications
ohmic resistance 1000000 Ω
Connection faston plug 6.3 mm
Number of phases 1
Version IEC inlet filter C16
Rated Voltage 250 VAC
Inductance per line 0.075 mH
integrated switch No
Capacity X|Y X2 100 nF, Y2 2.2 nF
max. frequency 0.0004 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated current 15 A
Show similar products (0)
Logistics
Country of origin TH
Customs tariff number 85363010
Original Packaging Carton with 120 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 15 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
IEC inlet filter C14, 50 to 400 Hz, 10 A, 250 VAC, 225 µH, faston plug 6.3 mm, FN9222R-10-06
Order No.:
 71D1147
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222R-10-06
1 pcs.
5.03 €
5 pcs.
4.63 €
25 pcs.
4.41 €
75 pcs.
4.21 €
150 pcs.
4.09 €
5.03 € *
Available: 23 pcs.
1000000 Ω
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
10 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 1 A, 250 VAC, 12 mH, Wire, FN9222R-1-07
Order No.:
 71D1141
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222R-1-07
120 pcs.
6.55 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
Wire
-25 °C
85 °C
1 A
0.00005 MHz
IEC inlet filter C16, 50 to 400 Hz, 15 A, 250 VAC, 75 µH, faston plug 6.3 mm, FN9222R-15-06HI
Order No.:
 71D1154
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222R-15-06HI
120 pcs.
6.16 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C16
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
15 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 3 A, 250 VAC, 2.5 mH, faston plug 6.3 mm, FN9222R-3-06
Order No.:
 71D1142
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222R-3-06
120 pcs.
4.57 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
3 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 15 A, 250 VAC, 75 µH, Wire, FN9222R-15-07
Order No.:
 71D1155
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222R-15-07
120 pcs.
6.97 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
Wire
-25 °C
85 °C
15 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 3 A, 250 VAC, 2.5 mH, Wire, FN9222R-3-07
Order No.:
 71D1143
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222R-3-07
120 pcs.
6.63 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
Wire
-25 °C
85 °C
3 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 6 A, 250 VAC, 780 µH, faston plug 6.3 mm, FN9222R-6-06
Order No.:
 71D1144
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222R-6-06
120 pcs.
4.66 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
6 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 1 A, 250 VAC, 12 mH, faston plug 6.3 mm, FN9222R-1-06
Order No.:
 71D1140
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222R-1-06
120 pcs.
4.51 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
1 A
0.00005 MHz
IEC inlet filter C20, 50 to 400 Hz, 16 A, 250 VAC, 540 µH, faston plug 6.3 mm, FN9222R-16-06
Order No.:
 71D1157
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222R-16-06
60 pcs.
9.73 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C20
250 VAC
X2 330 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
16 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 10 A, 250 VAC, 225 µH, Wire, FN9222R-10-07
Order No.:
 71D1148
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222R-10-07
120 pcs.
6.83 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
Wire
-25 °C
85 °C
10 A
0.00005 MHz
IEC inlet filter C16, 50 to 400 Hz, 12 A, 250 VAC, 110 µH, faston plug 6.3 mm, FN9222R-12-06HI
Order No.:
 71D1150
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222R-12-06HI
120 pcs.
6.10 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C16
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
12 A
0.00005 MHz
IEC inlet filter C20, 50 to 400 Hz, 20 A, 250 VAC, 400 µH, faston plug 6.3 mm, FN9222R-20-06
Order No.:
 71D1158
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222R-20-06
60 pcs.
10.36 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C20
250 VAC
X2 330 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
20 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 6 A, 250 VAC, 780 µH, Wire, FN9222R-6-07
Order No.:
 71D1145
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222R-6-07
120 pcs.
6.74 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
Wire
-25 °C
85 °C
6 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 12 A, 250 VAC, 110 µH, faston plug 6.3 mm, FN9222R-12-06
Order No.:
 71D1149
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222R-12-06
120 pcs.
4.76 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
12 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 15 A, 250 VAC, 75 µH, faston plug 6.3 mm, FN9222R-15-06
Order No.:
 71D1153
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222R-15-06
120 pcs.
4.82 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
15 A
0.00005 MHz
