FN9222ES1-6-06 | Schaffner

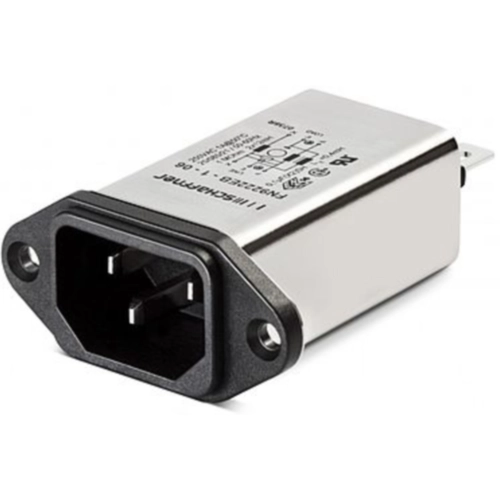

IEC inlet filter C14, 50 to 400 Hz, 6 A, 250 VAC, 780 µH, faston plug 6.3 mm, FN9222ES1-6-06

default S
default L
Total price
(6.77 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
120 pcs.
6.77 €
*incl. VAT plus shipping costs
Description

Product by Schaffner at Bürklin Elektronik

IEC inlet filter, FN9222ES1-6-06, SCHAFFNER

The FN9222ES1-6-06 is an IEC inlet filter that combines and mains with excellent filter attenuation in a small form factor and integrated earth line choke. This product includes a wide selection on amperage ratings, output connections, mounting possibilities and filters for medical applications are designed to offer you the desired solution.

Features

  • Excellent performance/size ratio
  • Optional wide mounting flanges
  • Integrated earth line choke

Applications

  • Portable electrical and electronic equipment
  • Small to medium-sized machines and household equipment
  • Single-phase power supplies, switch-mode power supplies
  • Test and measurement equipment
  • Rack mounting equipment
  • Medical equipment
Technical specifications
Connection faston plug 6.3 mm
Number of phases 1
Version IEC inlet filter C14
Rated Voltage 250 VAC
Inductance per line 0.78 mH
integrated switch No
Capacity X|Y X2 100 nF, Y2 2.2 nF
max. frequency 0.0004 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated current 6 A
Show similar products (0)
Logistics
Country of origin TH
Customs tariff number 85363010
Original Packaging Carton with 120 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 3 variations
Item description
Price list
Total
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
IEC inlet filter C14, 50 to 400 Hz, 6 A, 250 VAC, 780 µH, faston plug 6.3 mm, FN9222ES1-6-06
Order No.:
 71D1096
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222ES1-6-06
120 pcs.
6.77 €
0.00 € *
Currently not in stock, we will order for you
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
6 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 8 A, 250 VAC, 500 µH, faston plug 6.3 mm, FN9222ES1-8-06
Order No.:
 71D1097
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222ES1-8-06
120 pcs.
6.81 €
0.00 € *
Currently not in stock, we will order for you
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
8 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 15 A, 250 VAC, 75 µH, faston plug 6.3 mm, FN9222ES1-15-06
Order No.:
 71D1100
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9222ES1-15-06
120 pcs.
7.03 €
0.00 € *
Currently not in stock, we will order for you
IEC inlet filter C14
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
15 A
0.00005 MHz
