FN410-3-02 | Schaffner
PCB filter, 50 to 400 Hz, 3 A, 250 VAC, 2 mH, PCB connection, FN410-3-02
Order No.: 71D0846
EAN: 7612774450566
MPN:
FN410-3-02
800109
Unit Price (€ / pc.)
21.2296 € *
Standard delivery time from the manufacturer is: On Request

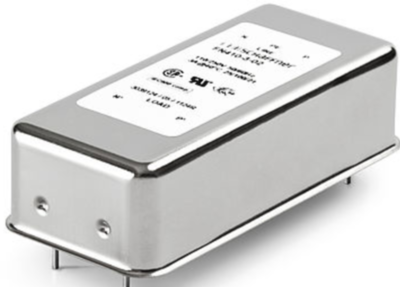

PCB filter, FN410-3-02, SCHAFFNER
The FN410-3-02 is a single-phase filter designed for easy and fast PCB-mounting. This product includes practical solution helping you to pass EMI system approval in a short time, amperage ratings are designed to offer you the desired standard product.
Features
- High attenuation two-stage design
- PCB-mountable design
- Two-stage single-phase design
Applications
- Electrical and electronic equipment
- Small to medium-sized machines and household equipment
- Single-phase power supplies, switch-mode power supplies
- Test and measurement equipment
Technical specifications
| max. frequency | 400 Hz | |
| Number of phases | 1 | |
| Rated current | 3 A | |
| Inductance per line | 2 mH | |
| Capacity X|Y | X2 33 nF, Y2 2.2 nF | |
| With fuse | No | |
| Version | PCB filter | |
| min. operating temperature | -25 °C | |
| Connection | PCB connection | |
| Rated Voltage | 250 VAC | |
| max. operating temperature | 100 °C | |
| min. frequency | 50 Hz |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 125 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
