FN406B-3-02 | Schaffner

PCB filter, 50 to 400 Hz, 3 A, 250 VAC, 2.5 mH, PCB connection, FN406B-3-02

Order No.: 71D0838
EAN: 7612774455042
MPN:
FN406B-3-02
800591
Series: FN406

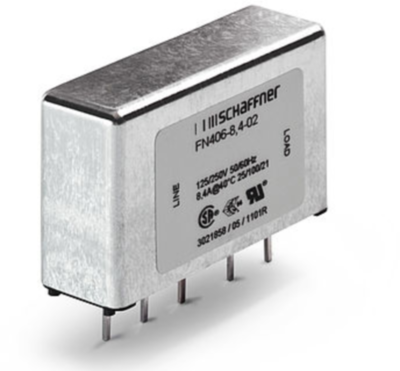

FN406B-3-02 Schaffner Interference suppression filter
Image may differ
Unit Price (€ / pc.)
10.0555 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2,513.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
250 pcs.
10.0555 €

PCB filter, FN406B-3-02, SCHAFFNER

The FN406B-3-02 is a single-phase filter designed for easy and fast PCB-mounting. This product includes practical solution helping you to pass EMI system approval in a short time, ratings and medical types are designed to offer you the desired standard product.

Features

  • Very compact PCB-mountable design
  • Low profile
  • Aluminium case
  • Optional medical version

Applications

  • Electrical and electronic equipment
  • Small to medium-sized machines and household equipment
  • Single-phase power supplies, switch-mode power supplies
  • Test and measurement equipment
  • Medical equipment
Technical specifications
Filter Property Value
Connection PCB connection
Capacity X|Y X2 100 nF
Number of phases 1
max. frequency 400 Hz
min. frequency 50 Hz
max. operating temperature 100 °C
Inductance per line 2.5 mH
min. operating temperature -25 °C
Rated Voltage 250 VAC
Version PCB filter
Rated current 3 A
With fuse No
ohmic resistance 1 MΩ
integrated switch No
Logistics
Property Value
Country of origin TH
Customs tariff number 85363010
Original Packaging Carton with 250 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
