FN406-0.5-02 | Schaffner
PCB filter, 50 to 400 Hz, 500 mA, 250 VAC, 24 mH, PCB connection, FN406-0.5-02
Unit Price (€ / pc.)
11.2098 € *
Available: 202 pcs.
Total Price:
11.21 € *
Price list
Quantity
Price per unit*
1 pcs.
11.2098 €
10 pcs.
9.8651 €
50 pcs.
9.1987 €
250 pcs.
8.5323 €
500 pcs.
8.1753 €
*incl. VAT plus shipping costs
Subject to prior sale

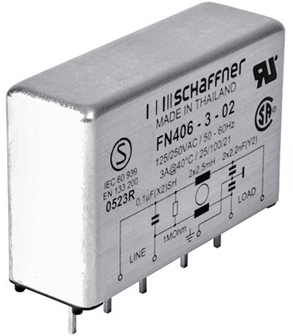

EMC filter, single-phase, type Schaffner FN 406.
With solder pins for PCB mounting, low-profile aluminum package for good shielding. Mounting dimensions only 15 x 45 mm; Capacitance: Cx 100 nF/Cy 2.2 nF. Leakage current: 373 µA. Operating voltage: 250 VAC at 50 to 60 Hz. Operating frequency: up to 400 Hz. Test voltage: 2000 VAC. Test logos: UL, CSA, ENEC 14.
Technical attributes (type, rated current at +40 °C, inductance): FN 406-0.5-02, 0.5 A, 24 mH
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of phases | 1 | |
| Rated Voltage | 250 VAC | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| Capacity X|Y | X2 100 nF, Y2 2.2 nF | |
| Rated current | 500 mA | |
| max. operating temperature | 100 °C | |
| Version | PCB filter | |
| Connection | PCB connection | |
| max. frequency | 400 Hz | |
| Inductance per line | 24 mH | |
| With fuse | No | |
| ohmic resistance | 1 MΩ | |
| integrated switch | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | TH |
| Original Packaging | Carton with 250 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
