FN405-10-02 | Schaffner
PCB filter, 50 to 400 Hz, 10 A, 250 VAC, 500 µH, PCB connection, FN405-10-02
Unit Price (€ / pc.)
10.8409 € *
Available: 0 pcs.
Leadtime: On Request **

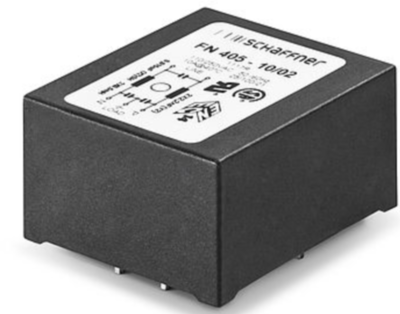

PCB filter, FN405-10-02, SCHAFFNER
The FN405-10-02 is a single-phase filter designed for easy and fast PCB-mounting. This product includes practical solution helping you to pass EMI system approval in a short time, amperage ratings are designed to offer you the desired standard product.
Features
- Compact PCB-mountable design
- Low profile
- PCB through hole mounting
Applications
- Electrical and electronic equipment
- Small to medium-sized machines and household equipment
- Single-phase power supplies, switch-mode power supplies
- Test and measurement equipment
Technical specifications
| Connection | Leiterplattenanschluss | |
| Number of phases | 1 | |
| Version | PCB Filter | |
| Rated Voltage | 250 VAC | |
| Inductance per line | 500 µH | |
| integrated switch | Yes | |
| Capacity X|Y | X2 15 nF, Y2 2,2 nF | |
| max. frequency | 400 Hz | |
| max. operating temperature | 100 °C | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| With fuse | No | |
| Rated current | 10 A |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85363010 |
| Original Packaging | Karton mit 250 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
