FN402-1.6-02 | Schaffner

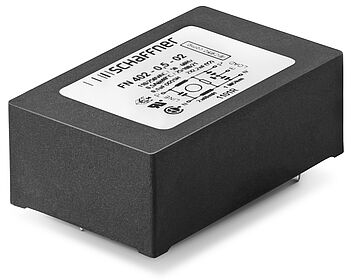

PCB filter, 50 to 400 Hz, 1.6 A, 250 VAC, 6 mH, PCB connection, FN402-1.6-02

default S
default L
Total price
(8.46 € * / pcs.)
8.46 €
Available: 99 pcs.
Quantity
Price per unit*
1 pcs.
8.46 €
5 pcs.
7.77 €
25 pcs.
7.41 €
75 pcs.
7.09 €
150 pcs.
6.89 €
*incl. VAT plus shipping costs
Show 4 variants
Description

Product by Schaffner at Bürklin Elektronik

EMC filter, single-phase, type Schaffner FN 402.

With solder pins for PCB mounting and low-profile plastic package; Capacitance: Cx 100 nF, Cy 2.2 nF. Leakage current: 373 µA. Operating voltage: 250 VAC/50 to 60 Hz. Operating frequency: to 400 Hz. Test voltage: 2000 VAC. Test logos: UL, CSA, ENEC 14.

Technical attributes (type, rated current at +40 °C, inductance): FN 402-1.6-02, 1.6 A, 6.0 mH

Technical specifications
ohmic resistance 1000000 Ω
Connection PCB connection
Number of phases 1
Version PCB filter
Rated Voltage 250 VAC
Inductance per line 6 mH
integrated switch Yes
Capacity X|Y X2 100 nF, Y2 2.2 nF
max. frequency 0.0004 MHz
max. operating temperature 100 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated current 1.6 A
Show similar products (0)
Logistics
Country of origin TH
Customs tariff number 85363010
Original Packaging Carton with 200 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item with 4 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
PCB filter, 50 to 400 Hz, 1.6 A, 250 VAC, 6 mH, PCB connection, FN402-1.6-02
Order No.:
 71D604
Manufacturer:
 Schaffner
Manufacturer SKU
 FN402-1.6-02
1 pcs.
8.46 €
5 pcs.
7.77 €
25 pcs.
7.41 €
75 pcs.
7.09 €
150 pcs.
6.89 €
8.46 € *
Available: 99 pcs.
1000000 Ω
PCB filter
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
PCB connection
-25 °C
100 °C
1.6 A
0.00005 MHz
PCB filter, 50 to 400 Hz, 6.5 A, 250 VAC, 1 mH, PCB connection, FN402-6.5-02
Order No.:
 71D0822
Manufacturer:
 Schaffner
Manufacturer SKU
 FN402-6.5-02
200 pcs.
8.69 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
PCB filter
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
PCB connection
-25 °C
100 °C
6.5 A
0.00005 MHz
PCB filter, 50 to 400 Hz, 2.5 A, 250 VAC, 2 mH, PCB connection, FN402-2.5-02
Order No.:
 71D0820
Manufacturer:
 Schaffner
Manufacturer SKU
 FN402-2.5-02
200 pcs.
8.51 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
PCB filter
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
PCB connection
-25 °C
100 °C
2.5 A
0.00005 MHz
PCB filter, 50 to 400 Hz, 4 A, 250 VAC, 1 mH, PCB connection, FN402-4-02
Order No.:
 71D0821
Manufacturer:
 Schaffner
Manufacturer SKU
 FN402-4-02
200 pcs.
8.60 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
PCB filter
250 VAC
X2 100 nF, Y2 2.2 nF
0.0004 MHz
1
PCB connection
-25 °C
100 °C
4 A
0.00005 MHz
