FN332Z-6-05 | Schaffner

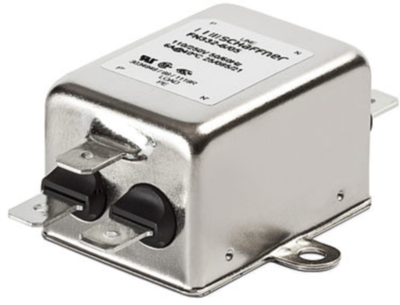

1-stage filter, 50 to 400 Hz, 6 A, 250 VAC, 800 µH, Connection pin, FN332Z-6-05

default S
default L
Total price
(23.37 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
60 pcs.
23.37 €
*incl. VAT plus shipping costs
Description

Product by Schaffner at Bürklin Elektronik

Single-stage filter, FN332Z-6-05, SCHAFFNER

The FN332Z-6-05 is a performance EMI filter with easy and fast chassis mounting.

Features

  • Compact housing
  • Optional overvoltage protection
  • Chokes with high saturation resistance and high inductivity
  • Custom-specific version

Applications

  • Electrical and electronic equipment
  • Household equipment
  • Power supplies
  • Office automation equipment
  • Industrial equipment auxiliary supply
Technical specifications
Connection Connection pin
Number of phases 1
Version 1-stage filter
Rated Voltage 250 VAC
Inductance per line 0.8 mH
Capacity X|Y X2 15 nF, Y2 2.2 nF
max. frequency 0.0004 MHz
max. operating temperature 100 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated current 6 A
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85363010
Original Packaging Carton with 60 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 3 variations
Item description
Price list
Total
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
1-stage filter, 50 to 400 Hz, 10 A, 250 VAC, 500 µH, Connection pin, FN332Z-10-05
Order No.:
 71D0543
Manufacturer:
 Schaffner
Manufacturer SKU
 FN332Z-10-05
60 pcs.
23.59 €
0.00 € *
Currently not in stock, we will order for you
1-stage filter
250 VAC
X2 15 nF, Y2 2.2 nF
0.0004 MHz
1
Connection pin
-25 °C
100 °C
10 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 6 A, 250 VAC, 800 µH, Connection pin, FN332Z-6-05
Order No.:
 71D0542
Manufacturer:
 Schaffner
Manufacturer SKU
 FN332Z-6-05
60 pcs.
23.37 €
0.00 € *
Currently not in stock, we will order for you
1-stage filter
250 VAC
X2 15 nF, Y2 2.2 nF
0.0004 MHz
1
Connection pin
-25 °C
100 °C
6 A
0.00005 MHz
1-stage filter, 50 to 400 Hz, 3 A, 250 VAC, 2 mH, Connection pin, FN332Z-3-05
Order No.:
 71D0541
Manufacturer:
 Schaffner
Manufacturer SKU
 FN332Z-3-05
60 pcs.
23.13 €
0.00 € *
Currently not in stock, we will order for you
1-stage filter
250 VAC
X2 15 nF, Y2 2.2 nF
0.0004 MHz
1
Connection pin
-25 °C
100 °C
3 A
0.00005 MHz
*incl. VAT plus shipping costs
