FN3268-16-44 | Schaffner
EMC/RFI filter, 60 Hz, 16 A, 3x 520/300 VAC, 7.5 kW, terminal block, FN3268-16-44
Unit Price (€ / pc.)
238.5593 € *
Standard delivery time from the manufacturer is: On Request

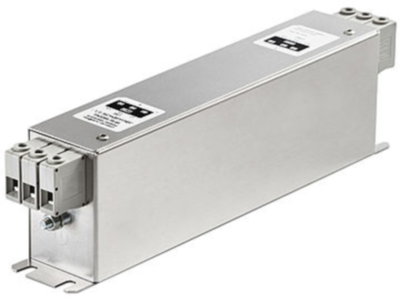

3-Phase filter, FN3268-16-44, SCHAFFNER
EMC/EMI filter for installations with residual current device (RCD).
Features
- Innovative low-leakage current filter
- Prevents unwanted fault shut-downs
- Patented filter design avoiding early saturation and ringing effects
- Significant reduction of leakage and ground currents
Applications
- Three-phase variable speed drives
- Machinery and process automation equipment
- Building automation,
- HVAC equipment
- Conveyors
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. frequency | 60 Hz | |
| Number of phases | 3 | |
| Rated current | 16 A | |
| Power | 7.5 kW | |
| With fuse | No | |
| Version | EMC/RFI filter | |
| min. operating temperature | -25 °C | |
| Connection | terminal block | |
| Rated Voltage | 3x 520/300 VAC | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85363010 |
| Original Packaging | Carton with 10 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
