FN3256H-25-33 | Schaffner
Line filter, 60 Hz, 25 A, 480 VAC, terminal block, FN3256H-25-33
Order No.: 71D0463
EAN: 7612774472964
MPN:
FN3256H-25-33
806110
Unit Price (€ / pc.)
196.5404 € *
Standard delivery time from the manufacturer is: On Request

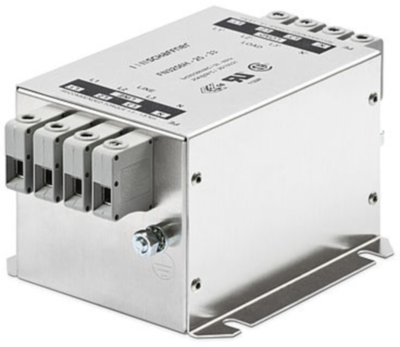

3-Phase/Neutral line filter, FN3256H-25-33, SCHAFFNER
Compact line filter for industrial machinery/equipment
Features
- Compact, space-saving design, optimized for industrial machinery
- Combines high attenuation performance with low leakage current
- Increases also the immunity if operated directly on the mains input
Applications
- Mainly industrial equipment
- Machinery
- Machine tools
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | line filter | |
| Rated Voltage | 480 VAC | |
| min. operating temperature | -25 °C | |
| max. operating temperature | 100 °C | |
| max. frequency | 60 Hz | |
| Connection | terminal block | |
| Rated current | 25 A | |
| Number of phases | 3 | |
| With fuse | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 6 pieces |
| Customs tariff number | 85363010 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
