FN3026HL-20-71 | Schaffner

EMC filter, 60 Hz, 20 A, 3x 520/300 VAC, 11 kW, terminal block, FN3026HL-20-71

Order No.: 71D0440
EAN: 7612774464280
MPN:
FN3026HL-20-71
802566
Series: FN3026

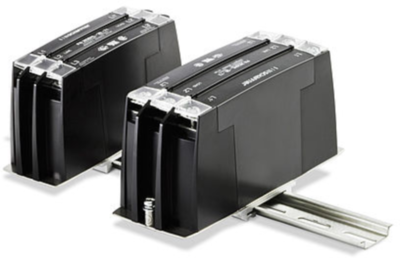

FN3026HL-20-71 Schaffner Interference suppression filter
Image may differ
Unit Price (€ / pc.)
106.7668 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,067.67 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
106.7668 €

3-Phase filter, FN3026HL-20-71, SCHAFFNER

DIN-Rail EMC/RFI filter with minimum leakage current.

Features

  • Compact state-of-the-art filter concept
  • Light weight plastic enclosure design
  • Hinged safety covers

Applications

  • Automation equipment
  • Motor drives and servo drives with short motor cables
  • Semiconductor manufacturing equipment
  • Three-phase power supplies
  • Medical equipment
Technical specifications
max. frequency 60 Hz
Number of phases 3
Rated current 20 A
Power 11 kW
With fuse No
Version EMC filter
min. operating temperature -25 °C
Connection terminal block
Rated Voltage 3x 520/300 VAC
max. operating temperature 100 °C
Logistics
Country of origin CN
Customs tariff number 85363010
Original Packaging Carton with 20 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
