Schaffner

FN281-4-06 | Schaffner

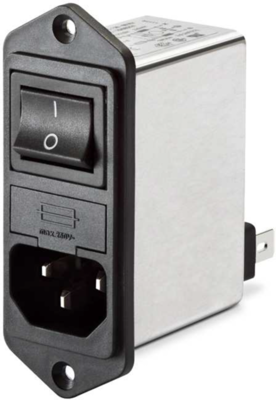

IEC inlet filter C14, 50 to 400 Hz, 4 A, 250 VAC, 1 mH, faston plug 6.3 mm, FN281-4-06

default S
default L
Total price
(22.30 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
40 pcs.
22.30 €
*incl. VAT plus shipping costs
Description

Product by Schaffner at Bürklin Elektronik

IEC inlet filter, FN281-4-06, SCHAFFNER

The FN281-4-06 is a power entry module combines an IEC inlet, mains filter with excellent filter attenuation and fuses in a small form factor. This product includes wide selection on amperage ratings, output connections, mounting possibilities and filters for medical applications are designed to offer you the desired solution.

Features

  • Single or dual-fuse holder
  • 2-pole rocker switch
  • General purpose application

Applications

  • Portable electrical and electronic equipment
  • EDP and office equipment
  • Single-phase power supplies, switch-mode power supplies
  • Test and measurement equipment
  • Medical equipment
Technical specifications
ohmic resistance 1000000 Ω
Connection faston plug 6.3 mm
Number of phases 1
Version IEC inlet filter C14
Rated Voltage 250 VAC
Inductance per line 1 mH
integrated switch Yes
Capacity X|Y X2 220 nF, Y2 2.2 nF
max. frequency 0.0004 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse Yes
Rated current 4 A
Show similar products (0)
Logistics
Country of origin TH
Customs tariff number 85363010
Original Packaging Carton with 40 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 5 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
IEC inlet filter C14, 50 to 400 Hz, 1 A, 250 VAC, 7.5 mH, faston plug 6.3 mm, FN281-1-06
Order No.:
 71D320
Manufacturer:
 Schaffner
Manufacturer SKU
 FN281-1-06
1 pcs.
22.82 €
4 pcs.
21.85 €
8 pcs.
20.94 €
20 pcs.
20.12 €
22.82 € *
Available: 52 pcs.
1000000 Ω
IEC inlet filter C14
250 VAC
X2 220 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
1 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 6 A, 250 VAC, 450 µH, faston plug 6.3 mm, FN281-6-06
Order No.:
 71D332
Manufacturer:
 Schaffner
Manufacturer SKU
 FN281-6-06
1 pcs.
23.51 €
4 pcs.
22.50 €
8 pcs.
21.59 €
20 pcs.
20.73 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 220 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
6 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 2 A, 250 VAC, 2 mH, faston plug 6.3 mm, FN281-2-06
Order No.:
 71D324
Manufacturer:
 Schaffner
Manufacturer SKU
 FN281-2-06
1 pcs.
23.05 €
4 pcs.
22.06 €
8 pcs.
21.16 €
20 pcs.
20.33 €
23.05 € *
Available: 32 pcs.
1000000 Ω
IEC inlet filter C14
250 VAC
X2 220 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
2 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 4 A, 250 VAC, 1 mH, faston plug 6.3 mm, FN281-4-06
Order No.:
 71D0392
Manufacturer:
 Schaffner
Manufacturer SKU
 FN281-4-06
40 pcs.
22.30 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 220 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
4 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 10 A, 250 VAC, 340 µH, faston plug 6.3 mm, FN281-10-06
Order No.:
 71D0393
Manufacturer:
 Schaffner
Manufacturer SKU
 FN281-10-06
40 pcs.
22.72 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X2 220 nF, Y2 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
10 A
0.00005 MHz
*incl. VAT plus shipping costs
