FN261-4-06 | Schaffner

IEC inlet filter C14, 50 to 400 Hz, 4 A, 250 VAC, 1 mH, faston plug 6.3 mm, FN261-4-06

Order No.: 71D308
EAN: 4099889076363
MPN:
FN261-4-06
800502
Series: FN261

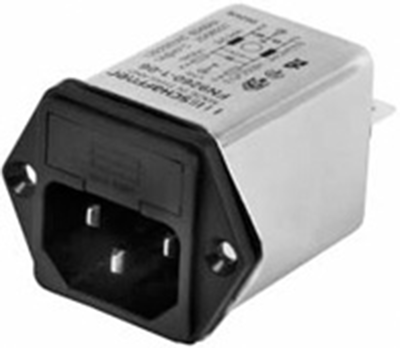

FN261-4-06 Schaffner Interference suppression filter Image 1
FN261-4-06 Schaffner Interference suppression filter Image 2
Image may differ
Unit Price (€ / pc.)
21.2534 € *
Available: 69 pcs.
Total Price:
21.25 € *
Price list
Quantity
Price per unit*
1 pcs.
21.2534 €
10 pcs.
18.7068 €
60 pcs.
17.1717 €
120 pcs.
16.5410 €
480 pcs.
15.5176 €
*incl. VAT plus shipping costs
Subject to prior sale

IEC inlet filter with fuse holder, type Schaffner FN 261/9260.

For one 5 x 20 mm fuse. Compact light-weight design; Capacitance: Cx 100 nF/Cy 2.2 nF. Leakage current: 373 µA. Operating voltage: 250 VAC, 50/60 Hz. Operating frequency: DC to 400 Hz. Test voltage: 2000 VAC. Connection: 6.3 x 0.8 mm solder/tab terminal combination. Test logo: UL, CSA, ENEC 14.

Technical attributes (type, rated current at +40 °C/+25 °C, rated inductance, number of fuses): FN 261 - 4 - 06, 4.0/4.6 A, 1.0 mH

Technical specifications
Filter Property Value
Number of phases 1
Rated Voltage 250 VAC
min. frequency 50 Hz
min. operating temperature -25 °C
Capacity X|Y X2 100 nF, Y2 2.2 nF
Rated current 4 A
max. operating temperature 85 °C
Version IEC inlet filter C14
Connection faston plug 6.3 mm
max. frequency 400 Hz
Inductance per line 1 mH
With fuse Yes
ohmic resistance 1 MΩ
integrated switch No
Logistics
Property Value
Customs tariff number 85363010
Country of origin TH
Original Packaging Carton with 60 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
