FN2200B-50-34 | Schaffner

EMC/EMI filter, 50 A, 1.2 kV (DC), terminal block, FN2200B-50-34

Order No.: 71D0260
EAN: 7612774470021
MPN:
FN2200B-50-34
803513

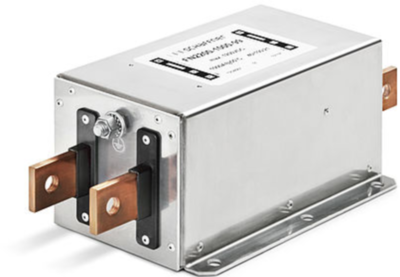

FN2200B-50-34 Schaffner Interference suppression filter
Image may differ
Unit Price (€ / pc.)
151.1419 € *
Standard delivery time from the manufacturer is: 32 Weeks
Total Price:
906.85 € *
*incl. VAT plus shipping costs
Subject to prior sale
6 pcs.
151.1419 €

DC filter, FN2200B-50-34, SCHAFFNER

The FN2200B-50-34 is a very compact DC filters for PV inverters and therefore support the integration in shrinking frame sizes of power electronics. This product comes in unsymmetrical housings, which help to prevent inverse installation and wrong electrical connection.

Features

  • Reduces conducted emissions towards the solar panel
  • Reduces the probability of EMI radiation off the solar panel
  • Helps to prevent pre-mature panel aging because of HF leakage currents
  • Helps to meet international EMC regulations for the entire PV system
  • Most compact standard solution in the industry, optionally available without capacitors to ground

Applications

  • DC motor drives
  • DC quick charger
  • UPS
Technical specifications
Filter Property Value
min. operating temperature -40 °C
With fuse No
Connection terminal block
Version EMC/EMI filter
Rated voltage (DC) 1.2 kV
max. operating temperature 100 °C
integrated switch No
Rated current 50 A
Logistics
Property Value
Customs tariff number 85363010
Original Packaging Carton with 6 pieces
Country of origin HU
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
