FN2090-16-06 | Schaffner

2-stage filter, 50 to 400 Hz, 16 A, 250 V (DC), 250 VAC, 4 mH, faston plug 6.3 mm, FN2090-16-06

Order No.: 71D0209
EAN: 7612774463771
MPN:
FN2090-16-06
802444
Series: FN2090

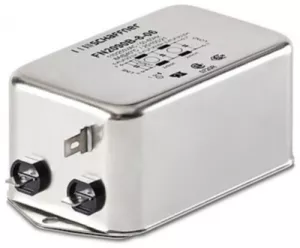

FN2090-16-06 Schaffner Interference suppression filter
Image may differ
Unit Price (€ / pc.)
47.9451 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
958.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
20 pcs.
47.9451 €

Two-stage filter, FN2090-16-06, SCHAFFNER

Multi-stage AC/DC EMI filter with excellent attenuation performance.

Features

  • Two-stage filter
  • Very high differential and common-mode attenuation
  • Rated currents from 1 to 30 A
  • Various terminal options allow you to select the desired connection style

Applications

  • Electrical and electronic equipment
  • Household equipment
  • Electronic data processing equipment
  • Office automation and datacom equipment
  • Medical equipment
  • Machinery
Technical specifications
Rated voltage (DC) 250 V
max. frequency 400 Hz
Number of phases 1
integrated switch No
Rated current 16 A
Inductance per line 4 mH
Capacity X|Y X1 1 µF, Y1 10 nF, Y2 1 nF
With fuse No
Version 2-stage filter
min. operating temperature -25 °C
Connection faston plug 6.3 mm
Rated Voltage 250 VAC
max. operating temperature 100 °C
min. frequency 50 Hz
ohmic resistance 220 kΩ
Logistics
Country of origin CN
Customs tariff number 85363010
Original Packaging Carton with 20 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
