Schaffner

FN2080-1-07 | Schaffner

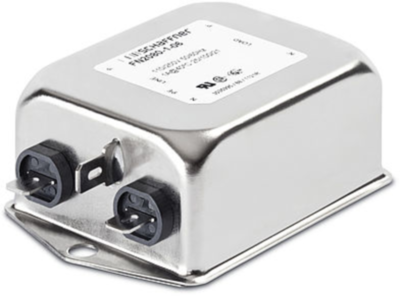

2-stage filter, 50 to 400 Hz, 1 A, 250 V (DC), 250 VAC, 22 mH, Wire, FN2080-1-07

default S
default L
Total price
(27.41 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
50 pcs.
27.41 €
*incl. VAT plus shipping costs
Description

Product by Schaffner at Bürklin Elektronik

Two-stage filter, FN2080-1-07, SCHAFFNER

Multi-stage high performance AC/DC EMI filter

Features

  • High differential and common-mode attenuation
  • Good low frequency attenuation
  • Rated currents from 1 to 16 A
  • Various terminal options allow you to select the desired connection style

Applications

  • Electrical and electronic equipment
  • Household equipment
  • Building automation
  • Industrial application
  • Machinery
  • Medical equipment
  • Electronic data processing equipment
  • Office automation and datacom equipment
  • Lighting applications (due to high differential mode inductance)
Technical specifications
ohmic resistance 1000000 Ω
Connection Wire
Number of phases 1
Version 2-stage filter
Rated Voltage 250 VAC
Inductance per line 22 mH
integrated switch No
Capacity X|Y X2 330 nF, Y2 4.7 nF
max. frequency 0.0004 MHz
max. operating temperature 100 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated voltage (DC) 250 V
Rated current 1 A
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85363010
Original Packaging Carton with 50 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 12 variations
Item description
Price list
Total
ohmic resistance
Version
Capacity X|Y
min. operating temperature
Rated Voltage
max. frequency
Number of phases
Connection
Rated voltage (DC)
max. operating temperature
Rated current
min. frequency
2-stage filter, 50 to 400 Hz, 6 A, 250 V (DC), 250 VAC, 7.8 mH, Wire, FN2080-6-07
Order No.:
 71D0181
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2080-6-07
20 pcs.
37.24 €
0.00 € *
Currently not in stock, we will order for you
220000 Ω
2-stage filter
X2 1 µF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
6 A
0.00005 MHz
2-stage filter, 50 to 400 Hz, 1 A, 250 V (DC), 250 VAC, 22 mH, Wire, FN2080-1-07
Order No.:
 71D0177
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2080-1-07
50 pcs.
27.41 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
2-stage filter
X2 330 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
1 A
0.00005 MHz
2-stage filter, 50 to 400 Hz, 10 A, 250 V (DC), 250 VAC, 4.5 mH, faston plug 6.3 mm, FN2080-10-06
Order No.:
 71D0182
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2080-10-06
20 pcs.
41.64 €
0.00 € *
Currently not in stock, we will order for you
220000 Ω
2-stage filter
X2 1 µF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
10 A
0.00005 MHz
2-stage filter, 50 to 400 Hz, 12 A, 250 V (DC), 250 VAC, 3.25 mH, Wire, FN2080-12-07
Order No.:
 71D0185
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2080-12-07
20 pcs.
50.54 €
0.00 € *
Currently not in stock, we will order for you
220000 Ω
2-stage filter
X2 1 µF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
12 A
0.00005 MHz
2-stage filter, 50 to 400 Hz, 16 A, 250 V (DC), 250 VAC, 2.8 mH, faston plug 6.3 mm, FN2080-16-06
Order No.:
 71D0186
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2080-16-06
10 pcs.
67.93 €
0.00 € *
Currently not in stock, we will order for you
220000 Ω
2-stage filter
X2 1 µF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
16 A
0.00005 MHz
2-stage filter, 50 to 400 Hz, 1 A, 250 V (DC), 250 VAC, 22 mH, faston plug 6.3 mm, FN2080-1-06
Order No.:
 71D0176
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2080-1-06
50 pcs.
22.57 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
2-stage filter
X2 330 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
1 A
0.00005 MHz
2-stage filter, 50 to 400 Hz, 3 A, 250 V (DC), 250 VAC, 9.8 mH, faston plug 6.3 mm, FN2080-3-06
Order No.:
 71D0178
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2080-3-06
20 pcs.
28.26 €
0.00 € *
Currently not in stock, we will order for you
470000 Ω
2-stage filter
X2 470 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
3 A
0.00005 MHz
2-stage filter, 50 to 400 Hz, 12 A, 250 V (DC), 250 VAC, 3.25 mH, faston plug 6.3 mm, FN2080-12-06
Order No.:
 71D0184
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2080-12-06
20 pcs.
43.96 €
0.00 € *
Currently not in stock, we will order for you
220000 Ω
2-stage filter
X2 1 µF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
12 A
0.00005 MHz
2-stage filter, 50 to 400 Hz, 16 A, 250 V (DC), 250 VAC, 2.8 mH, threaded bolt M4, FN2080-16-08
Order No.:
 71D0188
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2080-16-08
10 pcs.
81.52 €
0.00 € *
Currently not in stock, we will order for you
220000 Ω
2-stage filter
X2 1 µF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
threaded bolt M4
250 V
100 °C
16 A
0.00005 MHz
2-stage filter, 50 to 400 Hz, 3 A, 250 V (DC), 250 VAC, 9.8 mH, Wire, FN2080-3-07
Order No.:
 71D0179
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2080-3-07
20 pcs.
32.50 €
0.00 € *
Currently not in stock, we will order for you
470000 Ω
2-stage filter
X2 470 nF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
3 A
0.00005 MHz
2-stage filter, 50 to 400 Hz, 16 A, 250 V (DC), 250 VAC, 2.8 mH, Wire, FN2080-16-07
Order No.:
 71D0187
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2080-16-07
10 pcs.
78.12 €
0.00 € *
Currently not in stock, we will order for you
220000 Ω
2-stage filter
X2 1 µF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
16 A
0.00005 MHz
2-stage filter, 50 to 400 Hz, 10 A, 250 V (DC), 250 VAC, 4.5 mH, Wire, FN2080-10-07
Order No.:
 71D0183
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2080-10-07
20 pcs.
47.89 €
0.00 € *
Currently not in stock, we will order for you
220000 Ω
2-stage filter
X2 1 µF, Y2 4.7 nF
-25 °C
250 VAC
0.0004 MHz
1
Wire
250 V
100 °C
10 A
0.00005 MHz
