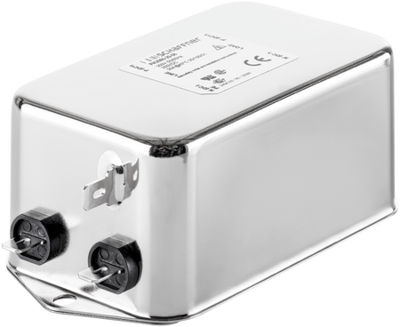

FN2060A-6-06 | Schaffner
2-stage filter, 50 to 400 Hz, 6 A, 250 V (DC), 250 VAC, 970 µH, faston plug 6.3 mm, FN2060A-6-06
Unit Price (€ / pc.)
19.992 € *
Available: 0 pcs.
Leadtime: On Request **
Single-phase filter, FN2060A-6-06, SCHAFFNER
Multi-stage general purpose AC/DC EMI filter
Features
- High differential and common-mode attenuation
- Rated currents from 1 to 30 A
- Optional safety version
- Various terminal options allow you to select the desired connection style
Applications
- Electrical and electronic equipment
- Household equipment
- Building automation
- Industrial application
- Machinery
- Medical equipment
- Electronic data processing equipment
- Office automation and datacom equipment
Technical specifications
| ohmic resistance | 1 MΩ | |
| Connection | Flachstecker 6,3 mm | |
| Number of phases | 1 | |
| Version | 2-Stufen Filter | |
| Rated Voltage | 250 VAC | |
| Inductance per line | 970 µH | |
| integrated switch | No | |
| Capacity X|Y | X2 220 nF, Y2 470 pF | |
| max. frequency | 400 Hz | |
| max. operating temperature | 100 °C | |
| min. frequency | 50 Hz | |
| min. operating temperature | -25 °C | |
| With fuse | No | |
| Rated voltage (DC) | 250 V | |
| Rated current | 6 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85363010 |
| Original Packaging | Karton mit 50 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
