FN2060A-12-06 | Schaffner

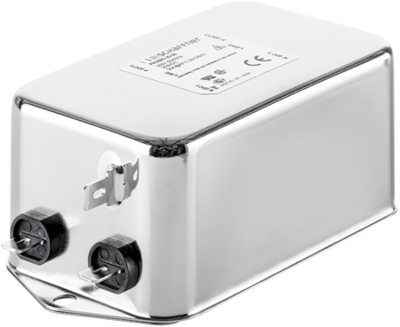

2-stage filter, 50 to 400 Hz, 12 A, 250 V (DC), 250 VAC, 580 µH, faston plug 6.3 mm, FN2060A-12-06

default S
default L
Total price
(23.59 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
50 pcs.
23.59 €
*incl. VAT plus shipping costs
Description

Product by Schaffner at Bürklin Elektronik

Single-phase filter, FN2060A-12-06, SCHAFFNER

Multi-stage general purpose AC/DC EMI filter

Features

  • High differential and common-mode attenuation
  • Rated currents from 1 to 30 A
  • Optional safety version
  • Various terminal options allow you to select the desired connection style

Applications

  • Electrical and electronic equipment
  • Household equipment
  • Building automation
  • Industrial application
  • Machinery
  • Medical equipment
  • Electronic data processing equipment
  • Office automation and datacom equipment
Technical specifications
ohmic resistance 470000 Ω
Connection faston plug 6.3 mm
Number of phases 1
Version 2-stage filter
Rated Voltage 250 VAC
Inductance per line 0.58 mH
integrated switch No
Capacity X|Y X2 470 nF, Y2 470 pF
max. frequency 0.0004 MHz
max. operating temperature 100 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse No
Rated voltage (DC) 250 V
Rated current 12 A
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85363010
Original Packaging Carton with 50 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item with 4 variations
Item description
Price list
Total
ohmic resistance
Version
Capacity X|Y
min. operating temperature
Rated Voltage
max. frequency
Number of phases
Connection
Rated voltage (DC)
max. operating temperature
Rated current
min. frequency
2-stage filter, 50 to 400 Hz, 6 A, 250 V (DC), 250 VAC, 970 µH, faston plug 6.3 mm, FN2060A-6-06
Order No.:
 71D0129
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2060A-6-06
50 pcs.
21.31 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
2-stage filter
X2 220 nF, Y2 470 pF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
6 A
0.00005 MHz
2-stage filter, 50 to 400 Hz, 30 A, 250 V (DC), 250 VAC, 600 µH, threaded bolt M4, FN2060A-30-08
Order No.:
 71D0132
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2060A-30-08
10 pcs.
70.63 €
0.00 € *
Currently not in stock, we will order for you
220000 Ω
2-stage filter
X2 1 µF, Y2 470 pF
-25 °C
250 VAC
0.0004 MHz
1
threaded bolt M4
250 V
100 °C
30 A
0.00005 MHz
2-stage filter, 50 to 400 Hz, 12 A, 250 V (DC), 250 VAC, 580 µH, faston plug 6.3 mm, FN2060A-12-06
Order No.:
 71D0130
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2060A-12-06
50 pcs.
23.59 €
0.00 € *
Currently not in stock, we will order for you
470000 Ω
2-stage filter
X2 470 nF, Y2 470 pF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
12 A
0.00005 MHz
2-stage filter, 50 to 400 Hz, 3 A, 250 V (DC), 250 VAC, 2.5 mH, faston plug 6.3 mm, FN2060A-3-06
Order No.:
 71D0128
Manufacturer:
 Schaffner
Manufacturer SKU
 FN2060A-3-06
50 pcs.
18.35 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
2-stage filter
X2 220 nF, Y2 470 pF
-25 °C
250 VAC
0.0004 MHz
1
faston plug 6.3 mm
250 V
100 °C
3 A
0.00005 MHz
