FN2010A-20-08 | Schaffner
1-stage filter, 50 to 400 Hz, 20 A, 250 V (DC), 250 VAC, 600 µH, threaded bolt M4, FN2010A-20-08
Order No.: 71D0021
EAN: 7612774456452
MPN:
FN2010A-20-08
800758
Unit Price (€ / pc.)
25.4303 € *
Standard delivery time from the manufacturer is: On Request

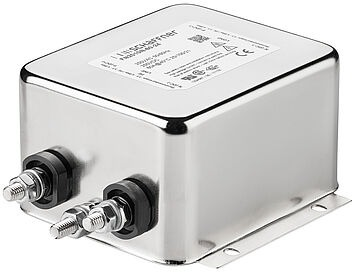

Single-stage filter, FN2010A-20-08, SCHAFFNER
General purpose AC/DC EMI filter
Features
- General purpose filtering performance
- Optional safety version
- Optional enhanced performance version
- Optional DC optimized version
Applications
- Electrical and electronic equipment
- Household equipment
- Medical equipment
- Office automation equipment
- Datacom equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| integrated switch | No | |
| Version | 1-stage filter | |
| Rated Voltage | 250 VAC | |
| min. frequency | 50 Hz | |
| Rated voltage (DC) | 250 V | |
| min. operating temperature | -25 °C | |
| Capacity X|Y | X2 100 nF, Y2 0.47 nF | |
| max. operating temperature | 100 °C | |
| max. frequency | 400 Hz | |
| ohmic resistance | 1 MΩ | |
| Inductance per line | 600 µH | |
| Connection | threaded bolt M4 | |
| Rated current | 20 A | |
| Number of phases | 1 | |
| With fuse | No |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 50 pieces |
| Customs tariff number | 85363010 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
