FN2010A-10-07 | Schaffner

1-stage filter, 50 to 400 Hz, 10 A, 250 V (DC), 250 VAC, 800 µH, stranded wires, FN2010A-10-07

Order No.: 71D0017
EAN: 7612774500261
MPN:
FN2010A-10-07
813697

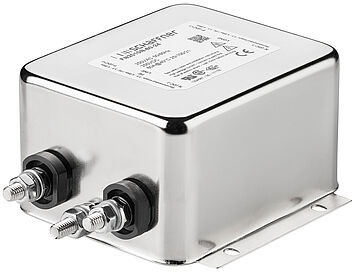

FN2010A-10-07 Schaffner Interference suppression filter
Image may differ
Unit Price (€ / pc.)
14.0896 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
845.38 € *
*incl. VAT plus shipping costs
Subject to prior sale
60 pcs.
14.0896 €

Single-stage filter, FN2010A-10-07, SCHAFFNER

General purpose AC/DC EMI filter

Features

  • General purpose filtering performance
  • Optional safety version
  • Optional enhanced performance version
  • Optional DC optimized version

Applications

  • Electrical and electronic equipment
  • Household equipment
  • Medical equipment
  • Office automation equipment
  • Datacom equipment
Technical specifications
Rated voltage (DC) 250 V
max. frequency 400 Hz
Number of phases 1
integrated switch No
Rated current 10 A
Inductance per line 800 µH
Capacity X|Y X2 100 nF, Y2 0.47 nF
With fuse No
Version 1-stage filter
min. operating temperature -25 °C
Connection stranded wires
Rated Voltage 250 VAC
max. operating temperature 100 °C
min. frequency 50 Hz
ohmic resistance 1 MΩ
Logistics
Country of origin CN
Customs tariff number 85363010
Original Packaging Carton with 60 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
