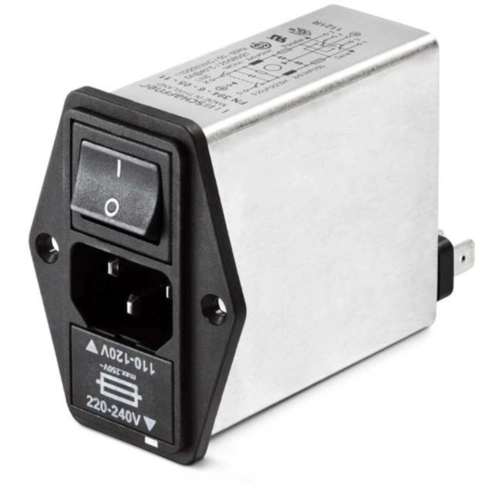

IEC inlet filter C14, 50 to 400 Hz, 10 A, 250 VAC, 600 µH, faston plug 6.3 mm, FN1394-10-05-11

default S
default L
Total price
(40.27 € * / pcs.)
40.27 €
Available: 76 pcs.
Next delivery: 40 pcs. on 2022-12-23
Quantity
Price per unit*
1 pcs.
40.27 €
3 pcs.
38.62 €
5 pcs.
37.09 €
10 pcs.
36.14 €
*incl. VAT plus shipping costs
Show 4 variants
Description

Product by Schaffner at Bürklin Elektronik

IEC inlet filter, FN1394-10-05-11, SCHAFFNER

The FN1394-10-05-11 is a power entry module combines an IEC inlet, that mains with single or dual-fuse holder, voltage selector and 2-pole rocker switch. This product is a practical solution helping you to pass EMI system approval in a short time.

Features

  • Single or dual-fuse holder
  • 2-pole rocker switch
  • Voltage selector
  • Custom-specific version

Applications

  • Portable electrical and electronic equipment
  • EDP and office equipment
  • Single-phase power supplies, switch-mode power supplies
  • Test and measurement equipment
Technical specifications
ohmic resistance 470000 Ω
Connection faston plug 6.3 mm
Number of phases 1
Version IEC inlet filter C14
Rated Voltage 250 VAC
Inductance per line 0.6 mH
integrated switch Yes
Capacity X|Y X2 220 nF, Y2 4.7 nF
max. frequency 0.0004 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse Yes
Rated current 10 A
Show similar products (0)
Logistics
Country of origin TH
Customs tariff number 85363010
Original Packaging Carton with 20 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 4 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
IEC inlet filter C14, 50 to 400 Hz, 10 A, 250 VAC, 600 µH, faston plug 6.3 mm, FN1394-10-05-11
Order No.:
 71D0807
Manufacturer:
 Schaffner
Manufacturer SKU
 FN1394-10-05-11
1 pcs.
40.27 €
3 pcs.
38.62 €
5 pcs.
37.09 €
10 pcs.
36.14 €
40.27 € *
Available: 76 pcs.
Next delivery: 40 pcs. on 2022-12-23
470000 Ω
IEC inlet filter C14
250 VAC
X2 220 nF, Y2 4.7 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
10 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 1 A, 250 VAC, 16 mH, faston plug 6.3 mm, FN1394-1-05-11
Order No.:
 71D0804
Manufacturer:
 Schaffner
Manufacturer SKU
 FN1394-1-05-11
20 pcs.
40.25 €
0.00 € *
Currently not in stock, we will order for you
470000 Ω
IEC inlet filter C14
250 VAC
X2 220 nF, Y2 4.7 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
1 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 6 A, 250 VAC, 2.5 mH, faston plug 6.3 mm, FN1394-6-05-11
Order No.:
 71D0806
Manufacturer:
 Schaffner
Manufacturer SKU
 FN1394-6-05-11
20 pcs.
41.06 €
0.00 € *
Currently not in stock, we will order for you
470000 Ω
IEC inlet filter C14
250 VAC
X2 220 nF, Y2 4.7 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
6 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 2.5 A, 250 VAC, 8 mH, faston plug 6.3 mm, FN1394-2.5-05-11
Order No.:
 71D0805
Manufacturer:
 Schaffner
Manufacturer SKU
 FN1394-2.5-05-11
20 pcs.
40.65 €
0.00 € *
Currently not in stock, we will order for you
470000 Ω
IEC inlet filter C14
250 VAC
X2 220 nF, Y2 4.7 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
2.5 A
0.00005 MHz
