RT8522-16-4M0 | Schaffner

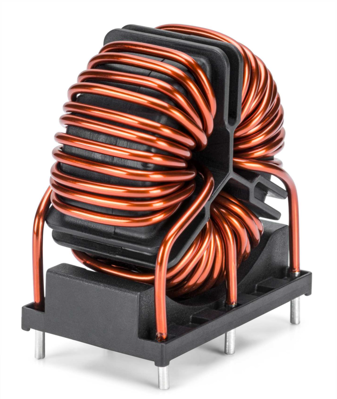

Common mode choke, 2 wire, vertical, 4 mH, 16 A, RT8522-16-4M0

default S
front S
default L
front L
Total price
(11.08 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
100 pcs.
11.08 €
*incl. VAT plus shipping costs
Description

Product by Schaffner at Bürklin Elektronik

Common mode choke, RT8522-16-4M0, SCHAFFNER

The RT8522-16-4M0 is a RT common-mode choke. It is mainly used to filter EMI noise on AC power lines up to 600 VAC. EMI noise of electronic equipment can go to the power lines and disturb the proper function of other devices like communication devices or control logic of robotics.

Features

  • Compact size and light weight
  • Excellent winding insulation
  • Broad range of inductance ratings

Applications

  • AC and DC filtering for midsize power range drives, photovoltaic inverters, fast chargers, charging stations, UPS and switch mode power supplies
  • Filter with low leakage current noise or improved immunity against grid disturbances
  • Electronic devices, automation and (industrial) LED lighting
  • Converters
Technical specifications
Version common mode choke
Design 2 wire, vertical
Width 32 mm
DC current 16 A
DC resistance 0.01 Ω
Height 52 mm
Inductance 4 mH
Length 50 mm
Tolerance -30/+50 %
