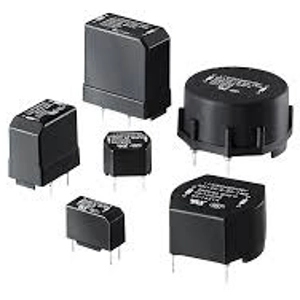

Common mode choke, radial, 8 µH, 4 A, RS514-4-02

default S
default L
Total price
(1.94 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
500 pcs.
1.94 €
*incl. VAT plus shipping costs
Description

Product by Schaffner at Bürklin Elektronik

Common mode choke, RS514-4-02, SCHAFFNER

The RS514-4-02 is a RS choke. It is a state of the art differential-mode or symmetric chokes, which can be used in various kinds of applications.

Features

  • 3 different applications specified
  • Usable for basic and reinforced equipment
  • 40 to 450 microjoules storage
  • Resonance Frequency from 500kHz to 60MHz in symmetrical mode

Applications

  • Energy filtering
  • Multistage discrete filtering
  • Frequency converters
  • DC/DC converters
Technical specifications
Version common mode choke
Design radial
Width 21.5 mm
DC current 4 A
DC resistance 0.02 Ω
Height 13.2 mm
Inductance 0.008 mH
Length 22.5 mm
Measuring frequency 0.01 MHz
Show similar products (0)
Logistics
Country of origin TH
Customs tariff number 85045000
Original Packaging Carton with 500 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 4 variations
Item description
Price list
Total
Design
Version
Width
Length
Height
Inductance
DC current
DC resistance
Common mode choke, radial, 480 µH, 500 mA, RS614-0.5-02
Order No.:
 71D1908
Manufacturer:
 Schaffner
Manufacturer SKU
 RS614-0.5-02
500 pcs.
1.86 €
0.00 € *
Currently not in stock, we will order for you
radial
common mode choke
15.5 mm
23 mm
25 mm
0.48 mH
0.5 A
0.8 Ω
Common mode choke, radial, 8 µH, 4 A, RS514-4-02
Order No.:
 71D1903
Manufacturer:
 Schaffner
Manufacturer SKU
 RS514-4-02
500 pcs.
1.94 €
0.00 € *
Currently not in stock, we will order for you
radial
common mode choke
21.5 mm
22.5 mm
13.2 mm
0.008 mH
4 A
0.02 Ω
Common mode choke, radial, 120 µH, 1 A, RS514-1-02
Order No.:
 71D1901
Manufacturer:
 Schaffner
Manufacturer SKU
 RS514-1-02
500 pcs.
1.88 €
0.00 € *
Currently not in stock, we will order for you
radial
common mode choke
21.5 mm
22.5 mm
13.2 mm
0.12 mH
1 A
0.2 Ω
Common mode choke, radial, 30 µH, 2 A, RS514-2-02
Order No.:
 71D1902
Manufacturer:
 Schaffner
Manufacturer SKU
 RS514-2-02
500 pcs.
1.92 €
0.00 € *
Currently not in stock, we will order for you
radial
common mode choke
21.5 mm
22.5 mm
13.2 mm
0.03 mH
2 A
0.05 Ω
*incl. VAT plus shipping costs
