RC112-0.5-10M | Schaffner

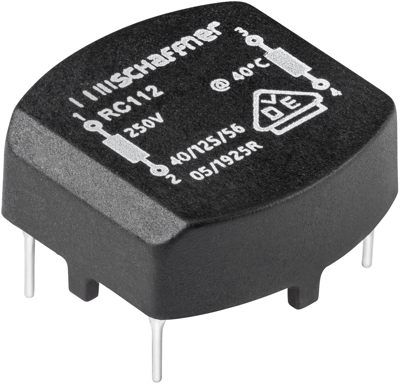

Common mode choke, horizontal, 10 mH, 500 mA, RC112-0.5-10M
Order No.: 76D2308
EAN: 7612774736400
MPN:
RC112-0.5-10M
819700
Unit Price (€ / pc.)
1.0710 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.07 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0710 €
10 pcs.
0.9758 €
50 pcs.
0.9282 €
100 pcs.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale
Common mode choke, RC112-0.5-10M, Schaffner
RC chokes are attenuating common-mode or asymmetric (P/N –> E) interference signals, by being connected in series with the phase and neutral lines of an AC powerline input. Symmetrical components of the noise are also attenuated by the leakage inductance (stray inductance) of the windings. These chokes are typically used in conjunction with suppression capacitors
Features
- High saturation resistance and excellent thermal behavior
- Through hole pin connections
- Dual-choke configuration
- Small compact design
- Multiple housing options
- Custom-specific versions are available on request
- Environmental friendly open design
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 17.5 mm | |
| DC resistance | 1000 mΩ | |
| Tolerance | ±15 % | |
| DC current | 500 mA | |
| Measuring frequency | 400 Hz | |
| Version | common mode choke | |
| Design | horizontal | |
| Height | 8 mm | |
| Length | 17.5 mm | |
| Inductance | 10 mH |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 500 pieces |
| Country of origin | TH |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
