RC112-0.4-15M | Schaffner

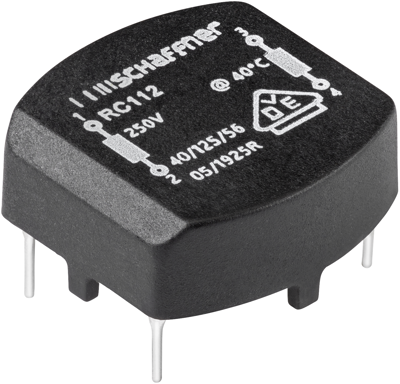

Common mode choke, horizontal, 15 mH, 400 mA, RC112-0.4-15M
Order No.: 76D2307
EAN: 7612774736332
MPN:
RC112-0.4-15M
819699
Unit Price (€ / pc.)
0.7021 € *
Standard delivery time from the manufacturer is: On Request
Common mode choke, RC112-0.4-15M, Schaffner
RC chokes are attenuating common-mode or asymmetric (P/N –> E) interference signals, by being connected in series with the phase and neutral lines of an AC powerline input. Symmetrical components of the noise are also attenuated by the leakage inductance (stray inductance) of the windings. These chokes are typically used in conjunction with suppression capacitors
Features
- High saturation resistance and excellent thermal behavior
- Through hole pin connections
- Dual-choke configuration
- Small compact design
- Multiple housing options
- Custom-specific versions are available on request
- Environmental friendly open design
Technical specifications
| DC current | 400 mA | |
| Width | 17.5 mm | |
| Height | 8 mm | |
| Length | 17.5 mm | |
| DC resistance | 1350 mΩ | |
| Measuring frequency | 400 Hz | |
| Version | common mode choke | |
| Design | horizontal | |
| Tolerance | ±15 % | |
| Inductance | 15 mH |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85045000 |
| Original Packaging | Carton with 500 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
