Schaffner

RC112-0.25-47M | Schaffner

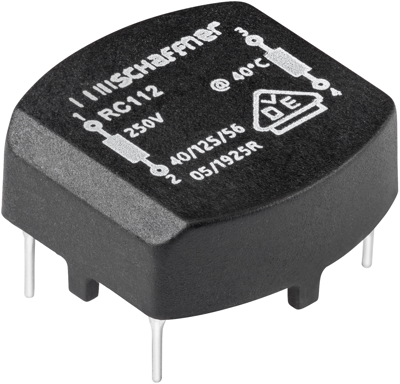

Common mode choke, horizontal, 47 mH, 250 mA, RC112-0.25-47M

default S
default L
Total price
(1.04 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
500 pcs.
1.04 €
*incl. VAT plus shipping costs
Description

Product by Schaffner at Bürklin Elektronik

Common mode choke, RC112-0.25-47M, Schaffner

RC chokes are attenuating common-mode or asymmetric (P/N –> E) interference signals, by being connected in series with the phase and neutral lines of an AC powerline input. Symmetrical components of the noise are also attenuated by the leakage inductance (stray inductance) of the windings. These chokes are typically used in conjunction with suppression capacitors

Features

  • High saturation resistance and excellent thermal behavior
  • Through hole pin connections
  • Dual-choke configuration
  • Small compact design
  • Multiple housing options
  • Custom-specific versions are available on request
  • Environmental friendly open design
Technical specifications
Version common mode choke
Design horizontal
Width 17.5 mm
DC current 0.25 A
DC resistance 2.4 Ω
Height 8 mm
Inductance 47 mH
Length 17.5 mm
Measuring frequency 0.0004 MHz
Tolerance ±15 %
Show similar products (0)
Logistics
Country of origin TH
Customs tariff number 85045000
Original Packaging Carton with 500 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 7 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Common mode choke, horizontal, 47 mH, 250 mA, RC112-0.25-47M
Order No.:
 76D2304
Manufacturer:
 Schaffner
Manufacturer SKU
 RC112-0.25-47M
500 pcs.
1.04 €
0.00 € *
Currently not in stock, we will order for you
horizontal
common mode choke
17.5 mm
17.5 mm
±15 %
8 mm
47 mH
0.25 A
2.4 Ω
Common mode choke, horizontal, 6.8 mH, 600 mA, RC112-0.6-6M8
Order No.:
 76D2309
Manufacturer:
 Schaffner
Manufacturer SKU
 RC112-0.6-6M8
500 pcs.
1.04 €
0.00 € *
Currently not in stock, we will order for you
horizontal
common mode choke
17.5 mm
17.5 mm
±15 %
8 mm
6.8 mH
0.6 A
0.63 Ω
Common mode choke, horizontal, 10 mH, 500 mA, RC112-0.5-10M
Order No.:
 76D2308
Manufacturer:
 Schaffner
Manufacturer SKU
 RC112-0.5-10M
500 pcs.
1.04 €
0.00 € *
Currently not in stock, we will order for you
horizontal
common mode choke
17.5 mm
17.5 mm
±15 %
8 mm
10 mH
0.5 A
1 Ω
Common mode choke, horizontal, 4.7 mH, 700 mA, RC112-0.7-4M7
Order No.:
 76D2310
Manufacturer:
 Schaffner
Manufacturer SKU
 RC112-0.7-4M7
500 pcs.
1.04 €
0.00 € *
Currently not in stock, we will order for you
horizontal
common mode choke
17.5 mm
17.5 mm
±15 %
8 mm
4.7 mH
0.7 A
0.44 Ω
Common mode choke, horizontal, 15 mH, 400 mA, RC112-0.4-15M
Order No.:
 76D2307
Manufacturer:
 Schaffner
Manufacturer SKU
 RC112-0.4-15M
500 pcs.
1.04 €
0.00 € *
Currently not in stock, we will order for you
horizontal
common mode choke
17.5 mm
17.5 mm
±15 %
8 mm
15 mH
0.4 A
1.35 Ω
Common mode choke, horizontal, 30 mH, 300 mA, RC112-0.3-30M
Order No.:
 76D2305
Manufacturer:
 Schaffner
Manufacturer SKU
 RC112-0.3-30M
500 pcs.
1.04 €
0.00 € *
Currently not in stock, we will order for you
horizontal
common mode choke
17.5 mm
17.5 mm
±15 %
8 mm
30 mH
0.3 A
2.2 Ω
Common mode choke, horizontal, 22 mH, 350 mA, RC112-0.35-22M
Order No.:
 76D2306
Manufacturer:
 Schaffner
Manufacturer SKU
 RC112-0.35-22M
500 pcs.
1.04 €
0.00 € *
Currently not in stock, we will order for you
horizontal
common mode choke
17.5 mm
17.5 mm
±15 %
8 mm
22 mH
0.35 A
1.9 Ω
