RB8532-25-0M9 | Schaffner

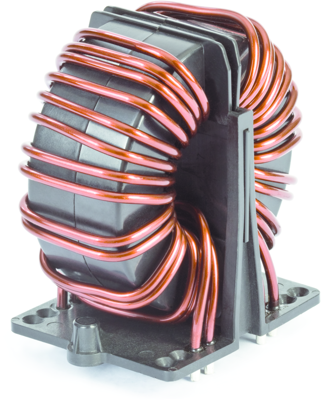

Common mode choke, radial, 940 µH, 25 A, RB8532-25-0M9
Order No.: 71D1844
EAN: 7612774423294
MPN:
RB8532-25-0M9
811885
Unit Price (€ / pc.)
18.8258 € *
Standard delivery time from the manufacturer is: On Request
Common mode choke, RB8532-25-0M9, SCHAFFNER
The RB8532-25-0M9 is a RB common-mode chokes. It is mainly used to filter EMI noise on AC power lines up to 600 VAC but they are as well applicable in DC power lines of photovoltaic installations or similar applications up to 1000 VDC.
Features
- Compact and light weight
- Low magnetic leakage flux
- Excellent winding insulation
- Broad range of inductance ratings
Applications
- AC and DC filtering for midsize power range drives, photovoltaic inverters, fast chargers, charging stations, UPS and switch mode power supplies
- Filter with low leakage current noise or improved immunity against grid disturbances
- Electronic devices, automation
- Converters
Technical specifications
| DC current | 25 A | |
| Height | 58 mm | |
| DC resistance | 3 mΩ | |
| Measuring frequency | 1 kHz | |
| Version | common mode choke | |
| Design | radial | |
| Tolerance | ±15 % | |
| Inductance | 940 µH |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85045000 |
| Original Packaging | Carton with 32 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
