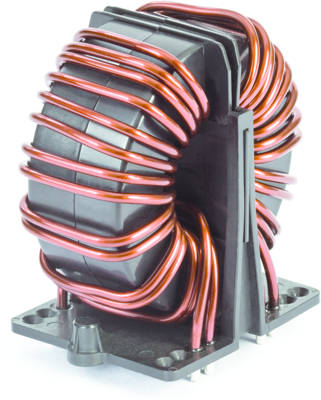

Common mode choke, radial, 250 µH, 50 A, RB6522-50-0M3

default S
default L
Total price
(16.18 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
60 pcs.
16.18 €
*incl. VAT plus shipping costs
Description

Product by Schaffner at Bürklin Elektronik

Common mode choke, RB6522-50-0M3, SCHAFFNER

The RB6522-50-0M3 is a RB common-mode chokes. It is mainly used to filter EMI noise on AC power lines up to 600 VAC but they are as well applicable in DC power lines of photovoltaic installations or similar applications up to 1000 VDC.

Features

  • Compact and light weight
  • Low magnetic leakage flux
  • Excellent winding insulation
  • Broad range of inductance ratings

Applications

  • AC and DC filtering for midsize power range drives, photovoltaic inverters, fast chargers, charging stations, UPS and switch mode power supplies
  • Filter with low leakage current noise or improved immunity against grid disturbances
  • Electronic devices, automation
  • Converters
Technical specifications
Version common mode choke
Design radial
DC current 50 A
DC resistance 0.0009 Ω
Height 58 mm
Inductance 0.25 mH
Measuring frequency 0.001 MHz
Tolerance ±15 %
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85045000
Original Packaging Carton with 60 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 4 variations
Item description
Price list
Total
Design
Version
Tolerance
Width
Length
Height
Inductance
DC current
DC resistance
Common mode choke, radial, 1 mH, 16 A, RB6522-16-1M0
Order No.:
 71D1831
Manufacturer:
 Schaffner
Manufacturer SKU
 RB6522-16-1M0
50 pcs.
12.69 €
0.00 € *
Currently not in stock, we will order for you
radial
common mode choke
±15 %
58 mm
1 mH
16 A
0.0046 Ω
Common mode choke, radial, 250 µH, 50 A, RB6522-50-0M3
Order No.:
 71D1834
Manufacturer:
 Schaffner
Manufacturer SKU
 RB6522-50-0M3
60 pcs.
16.18 €
0.00 € *
Currently not in stock, we will order for you
radial
common mode choke
±15 %
58 mm
0.25 mH
50 A
0.0009 Ω
Common mode choke, radial, 450 µH, 36 A, RB6522-36-0M5
Order No.:
 71D1833
Manufacturer:
 Schaffner
Manufacturer SKU
 RB6522-36-0M5
60 pcs.
15.11 €
0.00 € *
Currently not in stock, we will order for you
radial
common mode choke
±15 %
58 mm
0.45 mH
36 A
0.0015 Ω
Common mode choke, radial, 640 µH, 25 A, RB6522-25-0M6
Order No.:
 71D1832
Manufacturer:
 Schaffner
Manufacturer SKU
 RB6522-25-0M6
50 pcs.
15.09 €
0.00 € *
Currently not in stock, we will order for you
radial
common mode choke
±15 %
45 mm
46.93 mm
52 mm
0.64 mH
25 A
0.0026 Ω
*incl. VAT plus shipping costs
