RB6122-50-0M3 | Schaffner

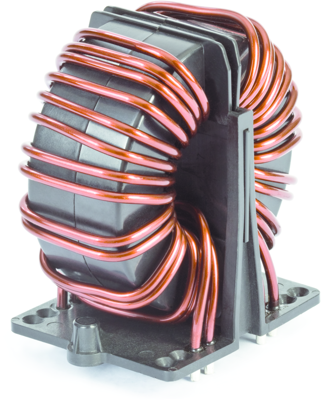

Common mode choke, radial, 250 µH, 50 A, RB6122-50-0M3
Order No.: 71D1826
EAN: 7612774423232
MPN:
RB6122-50-0M3
811869
Unit Price (€ / pc.)
14.2800 € *
Standard delivery time from the manufacturer is: On Request
Common mode choke, RB6122-50-0M3, SCHAFFNER
The RB6122-50-0M3 is a RB common-mode chokes. It is mainly used to filter EMI noise on AC power lines up to 600 VAC but they are as well applicable in DC power lines of photovoltaic installations or similar applications up to 1000 VDC.
Features
- Compact and light weight
- Low magnetic leakage flux
- Excellent winding insulation
- Broad range of inductance ratings
Applications
- AC and DC filtering for midsize power range drives, photovoltaic inverters, fast chargers, charging stations, UPS and switch mode power supplies
- Filter with low leakage current noise or improved immunity against grid disturbances
- Electronic devices, automation
- Converters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tolerance | ±15 % | |
| Version | common mode choke | |
| DC current | 50 A | |
| Height | 41.8 mm | |
| DC resistance | 0.9 mΩ | |
| Design | radial | |
| Measuring frequency | 1 kHz | |
| Inductance | 250 µH |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 64 pieces |
| Customs tariff number | 85045000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
