FS 2-20 | Sauter

Force meter, with internal measuring cell, 20 N, Sauter FS 2-20

Order No.: 12L7213
EAN: 4045761236974
MPN:
FS 2-20
Series: FS
FS 2-20 Sauter Tension and Force Testers Image 1
FS 2-20 Sauter Tension and Force Testers Image 2
FS 2-20 Sauter Tension and Force Testers Image 3
FS 2-20 Sauter Tension and Force Testers Image 4
FS 2-20 Sauter Tension and Force Testers Image 5
Image may differ
Unit Price (€ / pc.)
1,273.30 € *
Available in 5 Days: 2 pcs. - if ordered today
Total Price:
1,273.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,273.30 €

Electrical force gauge, FS 2-20, Sauter

The SAUTER FS premium force gauge has an load measuring cell for tensile and compressive force applications. Either mobile for rapid testing or stationary integrated into a test stand or production line, the multifunction display allows all the values recorded to be read off at a glance in real time. Via the integrated interface, the data can be sent to a PC or laptop for further processing. The SAUTER FS premium force gauge is compatible with all SAUTER strain gauge measuring cells, see Measuring Cells. Up to 4 external measuring cells can be connected simultaneously. If an external measuring channel is used, the internal load cell is deactivated as long as an external load cell is connected.

Features

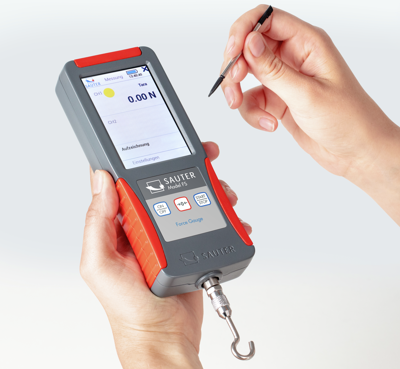

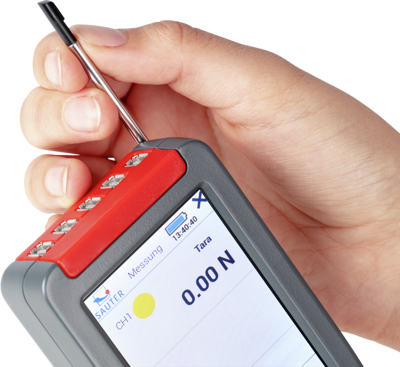

  • 3,5" touchscreen with touch pen
  • Suitable for 4-wire and 6-wire sensors with strain gauges
  • Two-point adjustment with weights or numerical adjustment possible
  • The specific data of an external sensor are stored directly in the connector
  • USB interface for data transfer and power supply as standard
  • Tolerance function
  • Track function for continuous measurement display
Technical specifications
Filter Property Value
Readability 0.004 N
Force 20 N
Version with internal measuring cell
Product type force meter
Logistics
Property Value
Customs tariff number 90248000
Country of origin DE
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
