FH 5K. | Sauter
Tension/compression force measuring device, for force measurements, 5000 N, Sauter FH 5K.
Unit Price (€ / pc.)
1,435.7350 € *
Available: 0 pcs.
Available in 5 Days: 4 pcs.
Leadtime: On Request **
Total Price:
1,435.74 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,435.7350 €

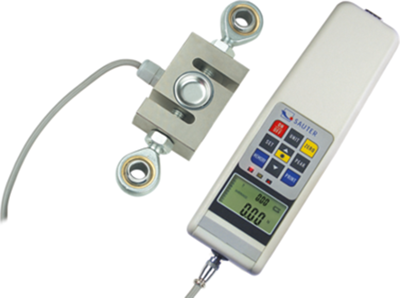

Tension and pressure force meters with RS-232 interface, type Sauter FH.
Peak-Hold and Track function, Push/Pull and mini statistics package; Resolution: 10000 points (total measuring range). Measuring frequency: 2000 Hz. Measuring tolerance: 0.2 %. Overload protection: 150 %. Selectable physical units: Newton, Pound, kg. Dimensions: L 238, W 63, H 36 mm. Weight: 640 g. Supplied with rechargeable batteries and charger.
With external force transducer.
Technical attributes (type, max. measured value, reading precision): FH 5k, 5000 N, 1.0 N
Technical specifications
| Product type | tension/compression force measuring device | |
| Version | for force measurements | |
| Force | 5000 N | |
| Readability | 1.0 N |
Download
Logistics
| Country of origin | CN |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
