CL05C4R7CB5NNNC | Samsung

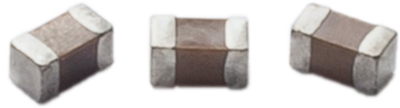

Ceramic capacitor, 4.7 pF, 50 V (DC), ±0.25 pF, SMD 0402 (1005), C0G, CL05C4R7CB5NNNC
Unit Price (€ / pc.)
0.0524 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
5.24 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0524 €
500 pcs.
0.0178 €
2500 pcs.
0.0107 €
8000 pcs.
0.0083 €
20000 pcs.
0.0071 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD multilayer ceramic capacitors size 0402, type Samsung CL05.
Rated voltage 50 V.
Technical specifications
| Filter | Property | Value |
|---|---|---|

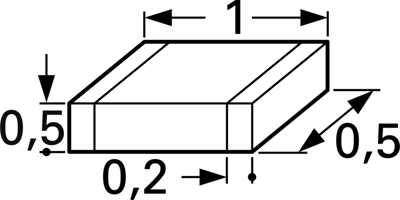

| Design | SMD 0402 (1005) | |
| max. operating temperature | 125 °C | |
| Capacity | 4.7 pF | |
| Dielectric material | C0G | |
| min. operating temperature | -55 °C | |
| Tolerance | ±0.25 pF | |
| Rated voltage (DC) | 50 V | |
| Length | 1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | KR |
| Original Packaging | Reel with 10,000 pieces |
| Customs tariff number | 85322400 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
