63RX301000M16X31.5 | Rubycon
Electrolytic capacitor, 1000 µF, 63 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16 mm, 63RX301000M16X31.5
Unit Price (€ / pc.)
1.2019 € *
Standard delivery time from the manufacturer is: On Request

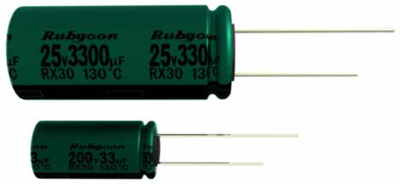

Aluminium electrolytic capacitor, 63RX301000M16X31.5, RUBYCON
Radial aluminium electrolytic capacitor
Features
- Load Life: 130℃ 1000-4000 hours
- AEC-Q200
- RoHS compliance
Applications
- Automotive
- LED Lighting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.5 mm | |
| diameter | 16 mm | |
| Rated voltage (DC) | 63 V | |
| max. operating temperature | 130 °C | |
| Tolerance | ±20 % | |
| Length | 31 mm | |
| Capacity | 1000 µF | |
| min. operating temperature | -40 °C | |
| Ripple current | 1.85 A | |
| Design | radial | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
