450SGV6R8M12.5X13.5 | Rubycon
Electrolytic capacitor, 6 µF, 450 V (DC), ±20 %, SMD, Ø 12 mm, 450SGV6R8M12.5X13.5
Unit Price (€ / pc.)
1.5470 € *
Available: 20 pcs.
Total Price:
15.47 € *
Price list
Quantity
Price per unit*
10 pcs.
1.5470 €
50 pcs.
1.3685 €
250 pcs.
1.1781 €
1000 pcs.
1.0353 €
2500 pcs.
0.9401 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, 450SGV6R8M12.5X13.5, RUBYCON

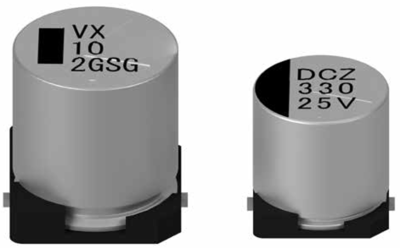

Aluminum electrolytic capacitor
Features
- Load Life: 105℃ 2000～5000 hours
- Lead free reflow soldering
- AEC-Q200
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 12 mm | |
| Rated voltage (DC) | 450 V | |
| max. operating temperature | 105 °C | |
| Tolerance | ±20 % | |
| Length | 13 mm | |
| Capacity | 6 µF | |
| min. operating temperature | -25 °C | |
| Ripple current | 110 mA | |
| Design | SMD | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
