400RX306R8M10X20 | Rubycon

Electrolytic capacitor, 6 µF, 400 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, 400RX306R8M10X20

Order No.: 12D6692
EAN: 4099879871565
MPN:
400RX306R8M10X20
Series: RX30
400RX306R8M10X20 Rubycon Electrolytic Capacitors

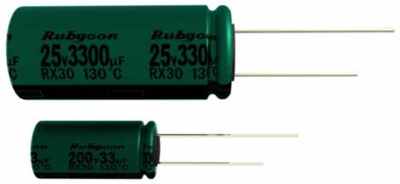

Image may differ
Unit Price (€ / pc.)
0.3332 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,332.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
0.3332 €

Aluminium electrolytic capacitor, 400RX306R8M10X20, RUBYCON

Radial aluminium electrolytic capacitor

Features

  • Load Life: 130℃ 1000-4000 hours
  • AEC-Q200
  • RoHS compliance

Applications

  • Automotive
  • LED Lighting
Technical specifications
Rated voltage (DC) 400 V
Capacity 6 µF
diameter 10 mm
Grid 5 mm
Length 20 mm
Version polar
Design radial
min. operating temperature -25 °C
Tolerance ±20 %
max. operating temperature 130 °C
Ripple current 150 mA
Logistics
Country of origin JP
Customs tariff number 85322200
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
