35TGV1500M16X21.5 | Rubycon
Electrolytic capacitor, 1500 µF, 35 V (DC), ±20 %, SMD, Ø 16 mm, 35TGV1500M16X21.5
Unit Price (€ / pc.)
1.5470 € *
Available: 10 pcs.
Total Price:
15.47 € *
Price list
Quantity
Price per unit*
10 pcs.
1.5470 €
50 pcs.
1.3685 €
250 pcs.
1.1781 €
1000 pcs.
1.0353 €
2500 pcs.
0.9401 €
*incl. VAT plus shipping costs
Subject to prior sale

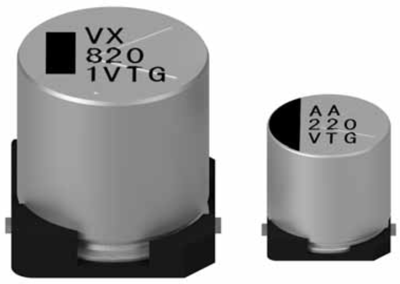

Electrolytic capacitor, 35TGV1500M16X21.5, RUBYCON
Aluminum electrolytic capacitor - SMD
Features
- Low ESR
- High rated capacitance
- RoHS-compatible
- Long useful life
Applications
- Automotive electronics
- Audio signal circuits
- Optical equipment
- Measuring equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 16 mm | |
| ESR (Equivalent Series Resistance) | 41 mΩ | |
| Rated voltage (DC) | 35 V | |
| max. operating temperature | 125 °C | |
| Tolerance | ±20 % | |
| Length | 21 mm | |
| Capacity | 1500 µF | |
| min. operating temperature | -40 °C | |
| Ripple current | 990 mA | |
| Design | SMD | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
