16PX1000MEFC10X12.5 | Rubycon
Electrolytic capacitor, 1000 µF, 16 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, 16PX1000MEFC10X12.5
Unit Price (€ / pc.)
0.5236 € *
Available: 33 pcs.
Total Price:
5.24 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5236 €
50 pcs.
0.3927 €
250 pcs.
0.3094 €
1000 pcs.
0.2666 €
2000 pcs.
0.2380 €
*incl. VAT plus shipping costs
Subject to prior sale

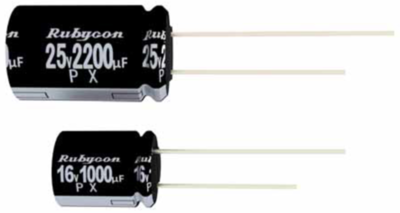

Aluminium electrolytic capacitor, 16PX1000MEFC10X12.5, RUBYCON
Radial aluminium electrolytic capacitor
Features
- Load Life: 105℃ 1000～2000 hours
- RoHS compliance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tolerance | ±20 % | |
| Capacity | 1000 µF | |
| diameter | 10 mm | |
| Rated voltage (DC) | 16 V | |
| Grid | 5 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Version | polar | |
| Design | radial | |
| Ripple current | 640 mA | |
| Length | 12.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
