RE938-05 | Roth Elektronik

Adaptation circuit board, 20.95 x 32.38 mm, pitch 2.54 mm, double-sided, FR4 epoxy, Cu 35 µm, RE938-05

Order No.: 10H6222

EAN: 4099889461978

MPN:

RE938-05

Image may differ

Key Specification:

Version adaptation circuit board

One / two-sided double-sided

Material FR4 epoxy

Throughplated Yes

Grid 2.54 mm

Ordering Information:

Alternative items: 11H6003

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Circuit board, 21 x 33 mm, pitch 2.54 mm, double-sided, FR4 epoxy, Cu 35 µm, BYB-3-11H6003

Order No.: 11H6003

Manufacturer: by.B

per pc. 1.5827 € *

Go to product

*incl. VAT plus shipping costs

Description

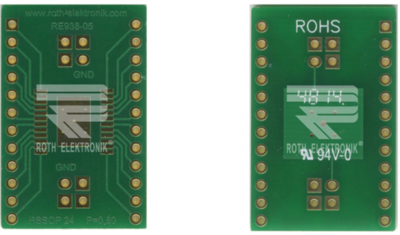

Multi-adapter board, RE938-05, Roth Elektronik

HSSOP adapter board, single-row with 2.54 mm grid, with shielding field and cooling area; Substrate: epoxy fiber-glass FR 4 (35 µm Cu), double-sided plating, through-plated (PTH). Board thickness: 1.5 mm. Finish: chem. Ni/Au, with solder resist. Perforation diameter: 1.1 mm. Solder pads: Ø 2.10 mm.

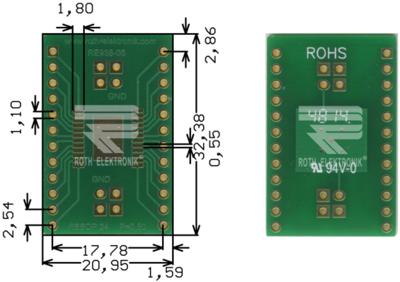

Type: RE938-05, for HSSOP24, 0.8 mm pitch, 20.95 x 32.38 mm.

Technical specifications

Filter	Property	Value
	Grid	2.54 mm
	Throughplated	Yes
	copper strength	35 m
	Material	FR4 epoxy
	Length	20.95 mm
	Height	1.5 mm
	Width	32.38 mm
	One / two-sided	double-sided
	Version	adaptation circuit board
	Surface type	chemical Ni/Au
