RE910 | Roth Elektronik

IC adapter board, 10.16 x 17.78 mm, pitch 2.54 mm, double-sided, FR4 epoxy, Cu 35 µm, RE910

Order No.: 10H6124

EAN: 4099889461701

MPN:

RE910

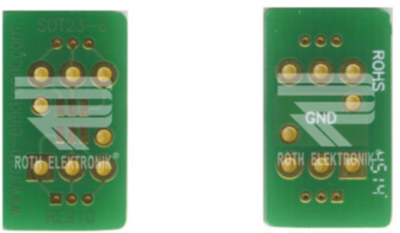

Image may differ

Key Specification:

Version IC adapter board

One / two-sided double-sided

Material FR4 epoxy

Throughplated Yes

Grid 2.54 mm

Ordering Information:

Alternative items: 11H6002

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Circuit board, 10 x 18 mm, pitch 2.54 mm, double-sided, FR4 epoxy, Cu 35 µm, BYB-3-11H6002

Order No.: 11H6002

Manufacturer: by.B

per pc. 1.5827 € *

Go to product

*incl. VAT plus shipping costs

Description

Adapter board, RE910, Roth Elektronik

SOT23-6 adapter board, with shielding field; Substrate: epoxy fiber-glass FR 4 (35 µm Cu), double-sided plating, through-plated (PTH). Board thickness: 1.5 mm. Finish: chemical Ni/Au, with solder resist. Pitch: 1.0 mm. Grid: 2.54 and 1.27 mm. Solder pads: Ø 2.0 mm. Dimensions: 10.16 x 17.78 mm.

Type: RE910, SOT23-6 adapter board, 1.0 mm pitch.

Technical specifications

Filter	Property	Value
	Version	IC adapter board
	One / two-sided	double-sided
	Material	FR4 epoxy
	Throughplated	Yes
	Grid	2.54 mm
	Length	10.16 mm
	Width	17.78 mm
	Height	1.5 mm
	Hole diameter	1.1 mm
	copper strength	35 m
	Surface type	chemical Ni/Au
