RE903 | Roth Elektronik
PCB, RE903. Dimensions: 16.2 x 10.4 mm, Epoxyd
Order No.: 11H172
EAN: 4099889463057
MPN:
RE903
Unit Price (€ / pc.)
8.8417 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
8.84 € *
Price list
Quantity
Price per unit*
1 pcs.
8.8417 €
10 pcs.
7.7826 €
50 pcs.
7.2590 €
150 pcs.
6.9258 €
500 pcs.
6.5807 €
*incl. VAT plus shipping costs
**Subject to prior sale

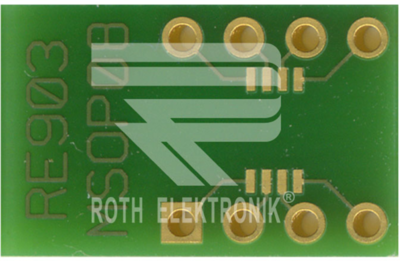

SMD-MSOP-8 multi-adapter boards, type Roth Elektronik RE 903.
Double-sided, through-plated; Substrate: epoxy FR4, 1.5 mm, 0.35 µm Cu, solder and component side with chem. Au surface and solder resist mask. Dimensions: 16.2 x 10.4 mm, hole diameter: 1.0 mm.
Type: RE903, PCB
Technical specifications
| Version | IC adapter boards | |
| Width | 10.4 mm | |
| Throughplated | Yes | |
| One / two-sided | double-sided | |
| Height | 1.5 mm | |
| copper strength | 35 m | |
| Length | 16.27 mm | |
| Hole diameter | 1.1 mm | |
| Material | FR4 epoxy | |
| Surface type | chemical Ni/Au | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | BG |
| Customs tariff number | 85340019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
