RE60-LF | Roth Elektronik

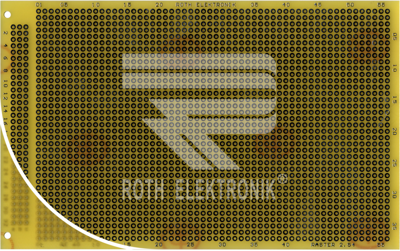

Lab board, 100 x 160 mm, pitch 2.54 mm, single sided, FR4 epoxy, Cu 35 µm, RE60-LF

Order No.: 10H680

EAN: 4099889462104

MPN:

RE60-LF

Image may differ

Key Specification:

Version lab board

One / two-sided single sided

Material FR4 epoxy

Throughplated No

Grid 2.54 mm

Ordering Information:

Alternative items: 11H6004

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Circuit board, 100 x 160 mm, pitch 2.54 mm, single sided, FR4 epoxy, Cu 35 µm, BYB-3-11H6004

Order No.: 11H6004

Manufacturer: by.B

per pc. 7.7350 € *

Go to product

*incl. VAT plus shipping costs

Description

Prototyping board, RE60-LF, Roth Elektronik

Single-sided 35 µm copper plating.

Dimensions: 100 x 160 mm.

Material: type RE060-LF phenolic resin laminated paper FR 2, organic surface protection (OSP), type RE60-LF epoxy resin FR 4 hot-tinned (HAL lead-free).

Board thickness: 1.5 mm.

Termination: connectors DIN 41612 design C, 32-, 64- and 96-pole.

Hole matrix: 37 x 56 solder lands.

Diameter of solder lands: 2.1 mm.

Hole diameter: 1.0 mm.

Grid: 2.54 x 2.54 mm.

Technical specifications

Filter	Property	Value
	Version	lab board
	One / two-sided	single sided
	Material	FR4 epoxy
	Throughplated	No
	Grid	2.54 mm
	Length	100 mm
	Width	160 mm
	Height	1.5 mm
	Hole diameter	1 mm
	copper strength	35 µm
	Surface type	hot air leveling (HAL)
