RE526-LF | Roth Elektronik

Lab board, 100 x 160 mm, pitch 2.54 mm, single sided, FR4 epoxy, Cu 35 µm, RE526-LF

Order No.: 10H8030

EAN: 4099889462609

MPN:

RE526-LF

Image may differ

Key Specification:

Version lab board

One / two-sided single sided

Material FR4 epoxy

Throughplated No

Grid 2.54 mm

Ordering Information:

Alternative items: 11H6016

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Circuit board, 100 x 160 mm, pitch 2.54 mm, single sided, FR4 epoxy, Cu 35 µm, BYB-3-11H6016

Order No.: 11H6016

Manufacturer: by.B

per pc. 7.7350 € *

Go to product

*incl. VAT plus shipping costs

Description

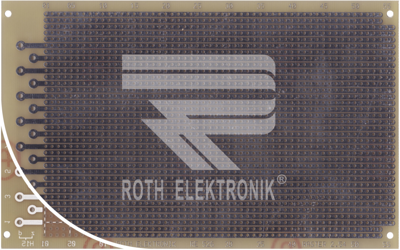

Prototyping board, RE526-LF, Roth Elektronik

Single-sided with 35 µm copper plating; Substrate: laminated paper FR 2, organic surface protection (OSP) or epoxy resin FR 4, hot-tinned (HAL lead-free). Board thickness: 1.5 mm. Format: 100 x 160 mm. Version: with connector socket to DIN 41612 (design H, 15-pole, grid 5.08 mm), position labeling on component side. With 36 PCB traces, each with 56 holes, hole grid: 2.54 x 2.54 mm, hole diameter: 1.0 mm.

Type: RE526-LF, 100 x 160 mm, epoxy resin.

Technical specifications

Filter	Property	Value
	Version	lab board
	One / two-sided	single sided
	Material	FR4 epoxy
	Throughplated	No
	Grid	2.54 mm
	Length	100 mm
	Width	160 mm
	Height	1.5 mm
	Hole diameter	1 mm
	copper strength	35 µm
	Surface type	hot air leveling (HAL)
