RE510-S3 | Roth Elektronik
Circuit breadboard, 100 x 580 mm, pitch 2.54 mm, single sided, CEM3 laminate, Cu 35 µm, RE510-S3
Order No.: 10H778
EAN: 4099889462432
MPN:
RE510-S3
Discontinued
Unit Price (€ / pc.)
20.0039 € *
Available: 5 pcs.
Total Price:
20.00 € *
Price list
Quantity
Price per unit*
1 pcs.
20.0039 €
10 pcs.
17.6001 €
50 pcs.
16.3982 €
150 pcs.
15.6723 €
500 pcs.
14.8869 €
*incl. VAT plus shipping costs
Subject to prior sale

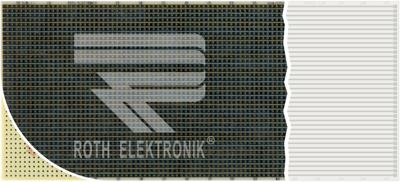

Prototyping board, RE510-S3, Roth Elektronik
With 38 PCB traces, single-sided plating; Substrate: CEM 3, 1.5 mm, 35 µm copper, HAL lead-free. Grid: 2.54 x 2.54 mm. Hole diameter: 1.0 mm.
Technical attributes (type, format, holes per trace): RE510-S3, 100 x 580 mm, 226 holes.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | breadboard | |
| One / two-sided | single sided | |
| Material | CEM3 laminate | |
| Throughplated | No | |
| Grid | 2.54 mm | |
| Length | 100 mm | |
| Width | 580 mm | |
| Height | 1.5 mm | |
| Hole diameter | 1 mm | |
| copper strength | 35 m | |
| Surface type | hot air leveling (HAL) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | BG |
| Customs tariff number | 85340019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
