RE438-LF | Roth Elektronik
Lab board, 100 x 160 mm, pitch 1.27 mm, double-sided, FR4 epoxy, Cu 35 µm, RE438-LF
Order No.: 10H8230
EAN: 4099889462937
MPN:
RE438-LF
Discontinued
Unit Price (€ / pc.)
36.3426 € *
Available: 11 pcs.
Total Price:
36.34 € *
Price list
Quantity
Price per unit*
1 pcs.
36.3426 €
5 pcs.
34.1649 €
15 pcs.
32.8440 €
50 pcs.
31.3922 €
150 pcs.
30.0951 €
*incl. VAT plus shipping costs
Subject to prior sale

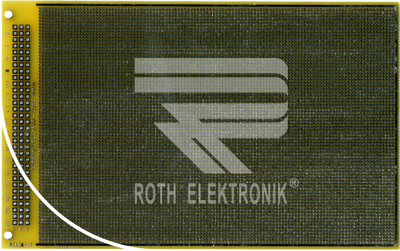

Prototyping board, RE438-LF, Roth Elektronik
Double-sided with 35 µm copper plating (through-plated); Substrate: epoxy resin FR 4, 1.5 mm, HAL lead-free. Format: 100 x 160 mm. Design: 113 x 76 solder lands, 1.0 mm². Grid: 1.27 x 1.27 mm, for connectors to DIN 41612 design C (32-, 64- and 96-pole).
Type: RE438-LF, 100 x 160 mm, epoxy resin.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | lab board | |
| One / two-sided | double-sided | |
| Material | FR4 epoxy | |
| Throughplated | No | |
| Grid | 1.27 mm | |
| Length | 100 mm | |
| Width | 160 mm | |
| Height | 1.5 mm | |
| Hole diameter | 0.35 mm | |
| copper strength | 35 m | |
| Surface type | hot air leveling (HAL) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | BG |
| Customs tariff number | 85340019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
