RE437-LF | Roth Elektronik

Lab board, 100 x 160 mm, pitch 1.27 mm, double-sided, FR4 epoxy, Cu 35 µm, RE437-LF

Order No.: 10H8217

EAN: 4099889462906

MPN:

RE437-LF

Image may differ

Key Specification:

Version lab board

One / two-sided double-sided

Material FR4 epoxy

Throughplated Yes

Grid 1.27 mm

Ordering Information:

Alternative items: 11H6034

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Circuit board, 100 x 160 mm, pitch 1.27 mm, double-sided, FR4 epoxy, Cu 35 µm, BYB-3-11H6034

Order No.: 11H6034

Manufacturer: by.B

per pc. 13.8040 € *

Go to product

*incl. VAT plus shipping costs

Description

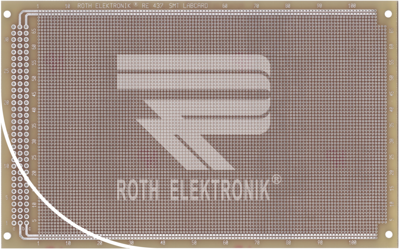

Prototyping board, RE437-LF, Roth Elektronik

Double-sided with 35 µm copper plating (through-plated); Substrate: epoxy resin FR 4, 1.5 mm, chemical tin. Format: 100 x 160 mm. Design: with 108 x 69 solder lands, 1.0 mm², hole grid: 1.27 x 1.27 mm (1/40 inch), 4 potential traces, for connectors to DIN 41612 design C (32-, 64- and 96-pole).

Type: RE437-LF, 100 x 160 mm, epoxy resin.

Technical specifications

Filter	Property	Value
	Version	lab board
	One / two-sided	double-sided
	Material	FR4 epoxy
	Throughplated	Yes
	Grid	1.27 mm
	Length	100 mm
	Width	160 mm
	Height	1.5 mm
	Hole diameter	0.35 mm
	copper strength	35 µm
	Surface type	hot air leveling (HAL)
