RE435-LF | Roth Elektronik

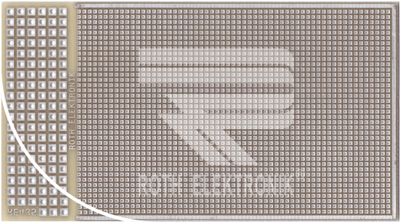

Lab board, 53 x 95 mm, pitch 1.27 mm, double-sided, FR4 epoxy, Cu 35 µm, RE435-LF

Order No.: 10H8222

EAN: 4099889462920

MPN:

RE435-LF

Image may differ

Key Specification:

Version lab board

One / two-sided double-sided

Material FR4 epoxy

Throughplated Yes

Grid 1.27 mm

Ordering Information:

Alternative items: 11H6035

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Circuit board, 53 x 95 mm, pitch 1.27 mm, double-sided, FR4 epoxy, Cu 35 µm, BYB-3-11H6035

Order No.: 11H6035

Manufacturer: by.B

per pc. 4.7362 € *

Go to product

*incl. VAT plus shipping costs

Description

Prototyping board, RE435-LF, Roth Elektronik

For all SMD components, double-sided with 35 µm copper plating, through-plated; Format: 53 x 95 mm. Board thickness: 0.7 mm. Material: epoxy resin FR 4, chemical tin. SMD hole matrix: 1.27 x 1.27 mm, 39 x 59 solder lands, 1.0 mm². Hole diameter: 0.35 mm.

Type: RE435-LF, 53 x 95 mm, epoxy resin.

Technical specifications

Filter	Property	Value
	Version	lab board
	One / two-sided	double-sided
	Material	FR4 epoxy
	Throughplated	Yes
	Grid	1.27 mm
	Length	53 mm
	Width	95 mm
	Height	0.8 mm
	Hole diameter	0.35 mm
	copper strength	35 µm
	Surface type	hot air leveling (HAL)
